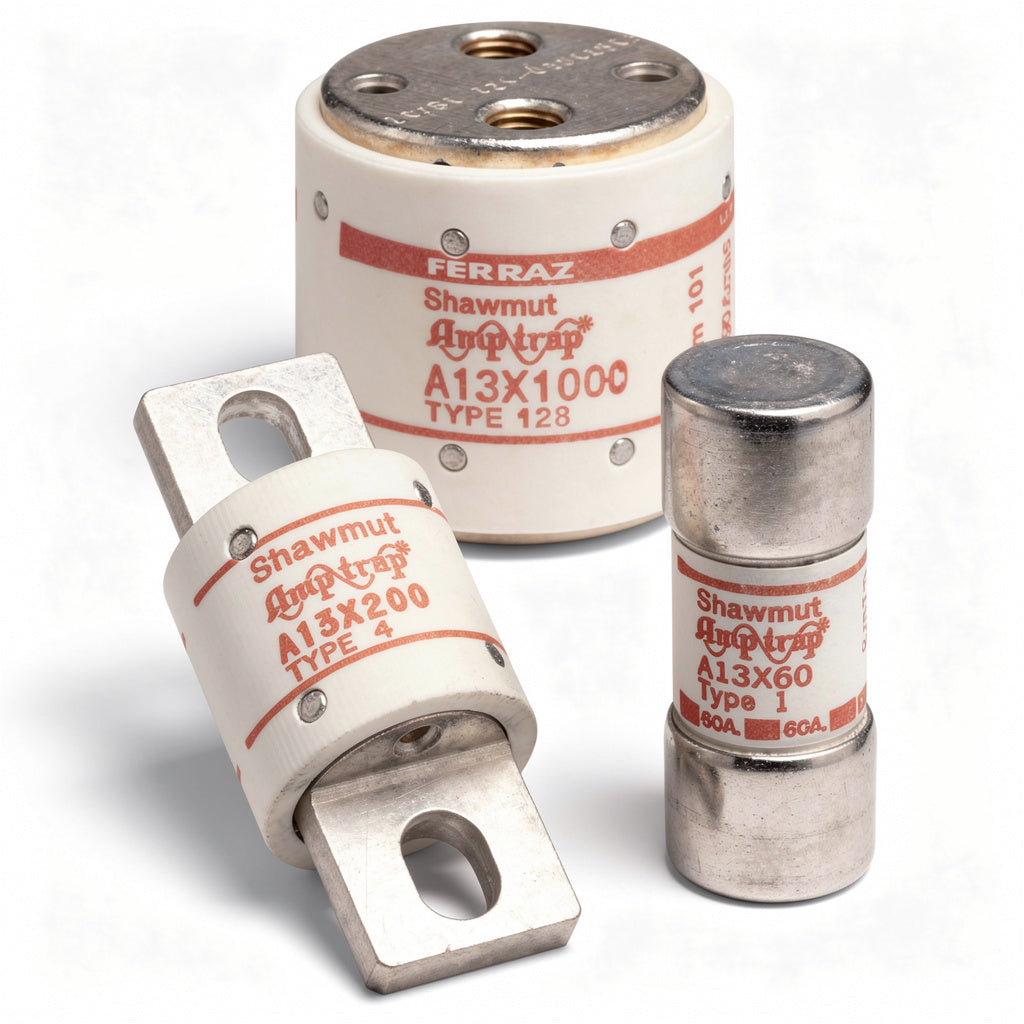

Mersen A13X150-4TA Amp-trap Form 101 Semiconductor Protection Fuse, 150A, 130V AC/100V DC
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A13X150-4TA is a high-performance semiconductor protection fuse from the Amp-trap Form 101 series, engineered to safeguard diodes and rectifiers in demanding industrial power applications. Featuring a Type 4TA bolt-in mounting configuration with an integrated trigger actuator (TA) for remote fault signaling, this fast-acting, current-limiting fuse delivers low I²t values to minimize thermal stress on protected components during short-circuit events.
| Product ID (MPN) | A13X150-4TA |
| Rated Current | 150A |
| Voltage Rating | 130V AC / 100V DC |
| Interrupting Rating (I.R.) | 8kA AC / 10kA DC |
| Mounting Type | Type 4TA (Blades, bolt-in, with trigger actuator) |
| Dimensions (Length A) | 2.66 in (67.6 mm) |
| Power Dissipation | 6.6W |
| Melting I²t | 3,600 A²s |
| Clearing I²t | 18,000 A²s |
| Recommended Fuse Block | P243D |
| Special Feature | Trigger Actuator (TA) for remote indication |
