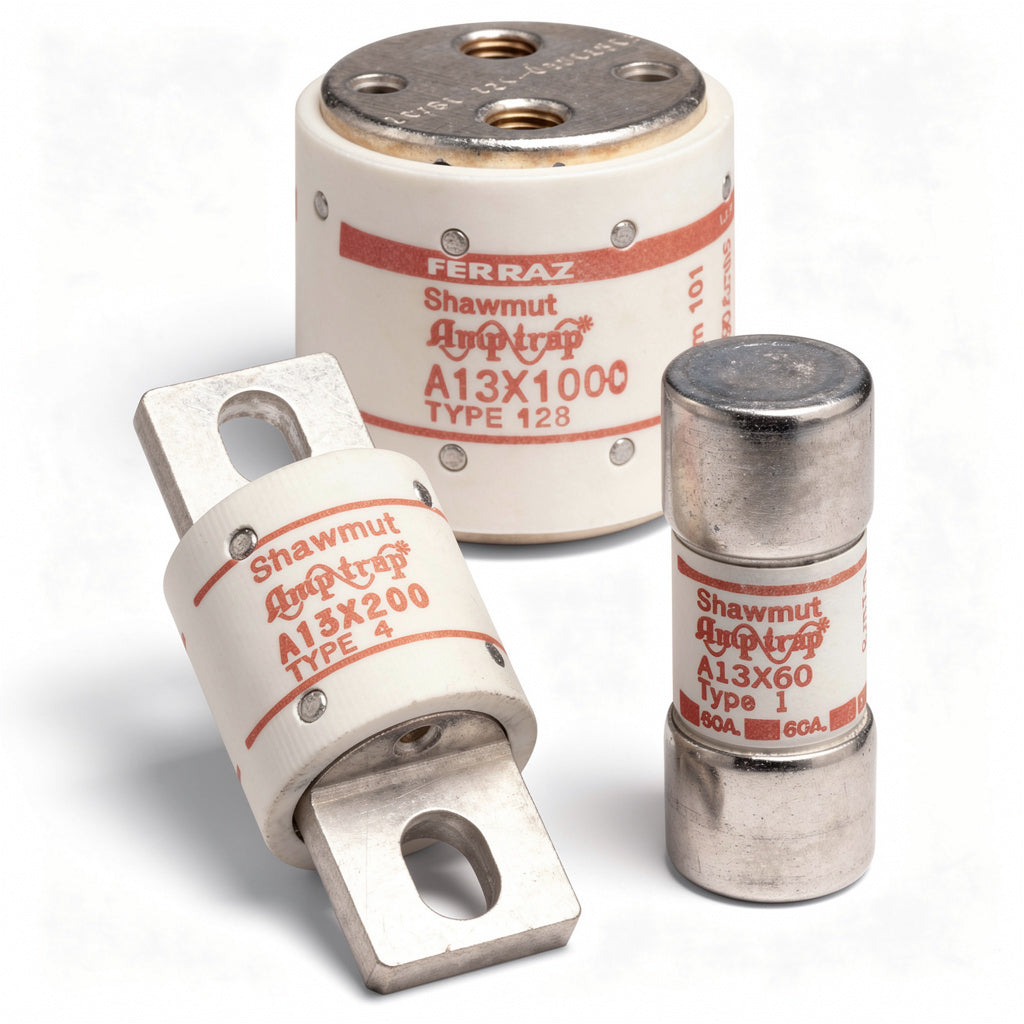

Mersen A13X350-4 Amp-trap Form 101 Semiconductor Protection Fuse, 350A, 130V AC/100V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A13X350-4 Amp-trap Form 101 fuse is a high-performance, fast-acting semiconductor protection device engineered to safeguard sensitive power electronics in industrial and commercial applications. Rated for 350A with a compact Type 4 bolt-in form factor, this current-limiting fuse delivers a critical layer of defense for rectifiers, inverters, and DC drives operating on 130V AC or 100V DC circuits.
Designed with an exceptionally low I²t (20,000 A²s melting) to minimize let-through energy during fault conditions, this fuse ensures maximum equipment longevity and system uptime. With an 8kA AC/10kA DC interrupting rating and a proven track record in demanding environments, the A13X350-4 is an essential component for procurement engineers specifying robust circuit protection in drives, UPS systems, and power conversion equipment.
| Product ID (MPN) | A13X350-4 |
| Ampere Rating | 350A |
| Voltage Rating & Interrupting Rating | AC: 130V / 8kA | DC: 100V / 10kA |
| Watts Loss | 18W |
| Melting I²t / Clearing I²t (A²s) | Melting: 20,000 | Clearing (1/2 fuses): 100,000 / 50,000 |
| Mount Type & Figure | Type 4 (Fig 2) |
| Dimensions (in/mm) | A: 2.66(67.6), B: 1.13(28.7), C: 1.16(29.5), D: 2.19(55.6), E: 1.91(48.5), F: .31(7.9), G: .88(22.4), H: .19(4.8) |
| Compatible Fuse Block | P243D |
| Core Features & Applications | Semiconductor Protection, Rectifiers; Fast Acting, Current Limiting, Low I²t |
