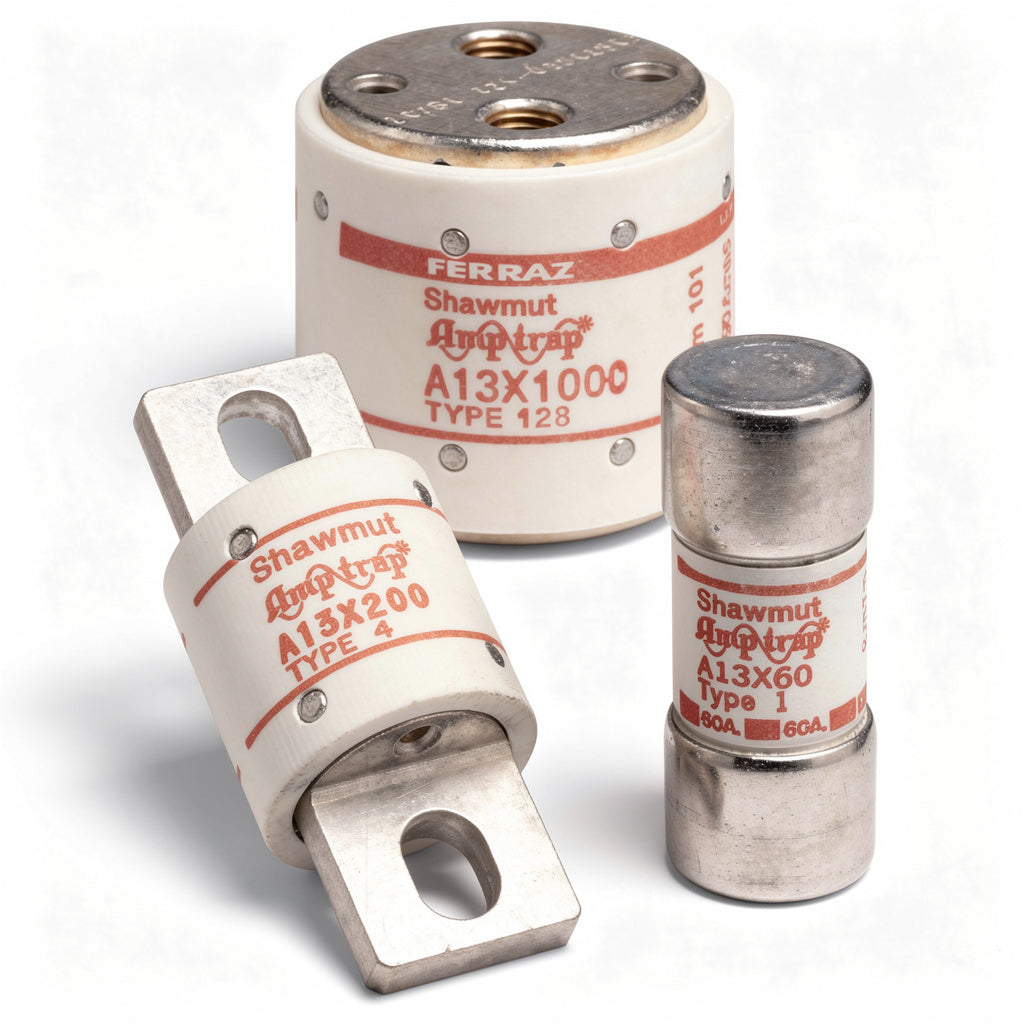

Mersen A13X350-4TI Amp-Trap A13X Semiconductor Protection Fuse with Trigger Indicator, 350A, 130VAC/100VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A13X350-4TI is a high-speed, current-limiting semiconductor protection fuse from the Amp-Trap Form 101 A13X series, rated at 350A and featuring an integral blown-fuse trigger indicator (TI) for instant visual status monitoring. Designed for the protection of diodes, thyristors, and power semiconductor devices in rectifier circuits, this bolt-in Type 4 fuse delivers ultra-low I²t performance (20,000 A²s melting) to minimize thermal stress during fault events. With dual AC/DC voltage ratings (130VAC/100VDC) and interrupting capacities of 8kA/10kA respectively, the built-in trigger indicator provides a reliable remote signaling interface, making it ideal for mission-critical industrial drives, UPS systems, and DC power supplies where immediate fault detection is essential.
| Product ID (MPN) | A13X350-4TI |
| Rated Current | 350A |
| Voltage Rating (AC) | 130VAC |
| Voltage Rating (DC) | 100VDC |
| Interrupting Rating (AC) | 8kA @ 130VAC |
| Interrupting Rating (DC) | 10kA @ 100VDC |
| Watts Loss | 18W |
| Melting I²t | 20,000 A²s |
| Clearing I²t (1 Fuse / 2 Fuses) | 100,000 A²s / 50,000 A²s |
| Indicator Type | Integral Blown-Fuse Trigger Indicator (TI) |
| Mount Type | Type 4, Fig 2 (Bolt-In) |
| Body Dimensions (L x Dia) | 2.66 x 1.13 in (67.6 x 28.7 mm) |
| Fuse Block | P243D |
| Product Series | A13X / Amp-Trap Form 101 |
| Applications | Semiconductor Protection, Rectifiers; Integral Blown-Fuse Indicator (TI) |
