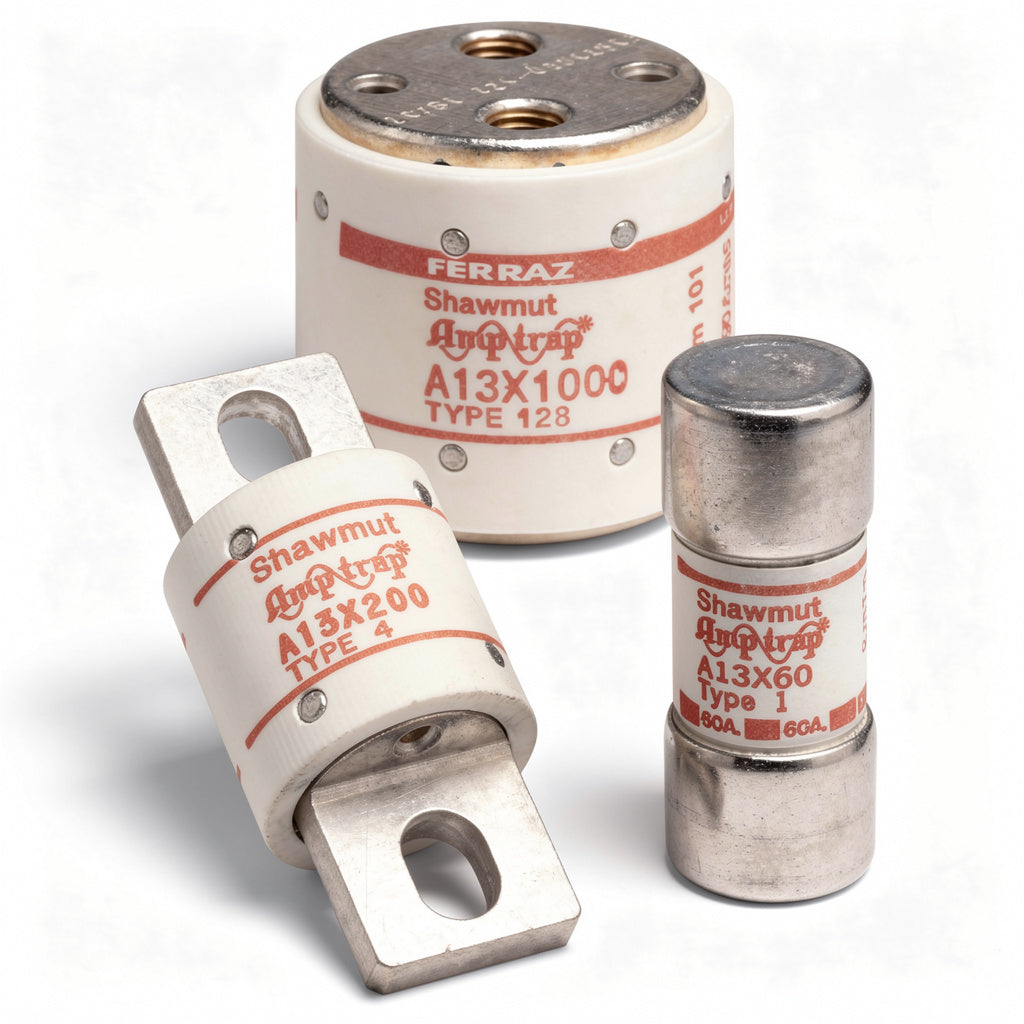

Mersen A13X600-4 Amp-Trap A13X Semiconductor Protection Fuse, 600A, 130VAC/100VDC
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A13X600-4 is a high-speed, current-limiting semiconductor protection fuse from the Amp-Trap Form 101 A13X series, rated at 600A with dual AC/DC voltage capability. Engineered specifically for the protection of diodes, thyristors, and other power semiconductor devices in rectifier circuits, this bolt-in Type 4 fuse delivers ultra-low I²t performance to minimize thermal stress on downstream components during fault conditions. With an interrupting rating of 8kA at 130VAC and 10kA at 100VDC, it is an optimal choice for high-power industrial drive systems, UPS equipment, and DC power supplies requiring fast-acting overcurrent protection.
| Product ID (MPN) | A13X600-4 |
| Rated Current | 600A |
| Voltage Rating (AC) | 130VAC |
| Voltage Rating (DC) | 100VDC |
| Interrupting Rating (AC) | 8kA @ 130VAC |
| Interrupting Rating (DC) | 10kA @ 100VDC |
| Watts Loss | 26W |
| Melting I²t | 58,000 A²s |
| Clearing I²t (1 Fuse / 2 Fuses) | 290,000 A²s / 140,000 A²s |
| Mount Type | Type 4, Fig 2 (Bolt-In) |
| Body Dimensions (L x Dia) | 3.50 x 1.50 in (88.9 x 38.1 mm) |
| Fuse Block | P243G |
| Product Series | A13X / Amp-Trap Form 101 |
| Applications | Semiconductor Protection, Rectifiers; Fast Acting, Current Limiting, Low I²t |
