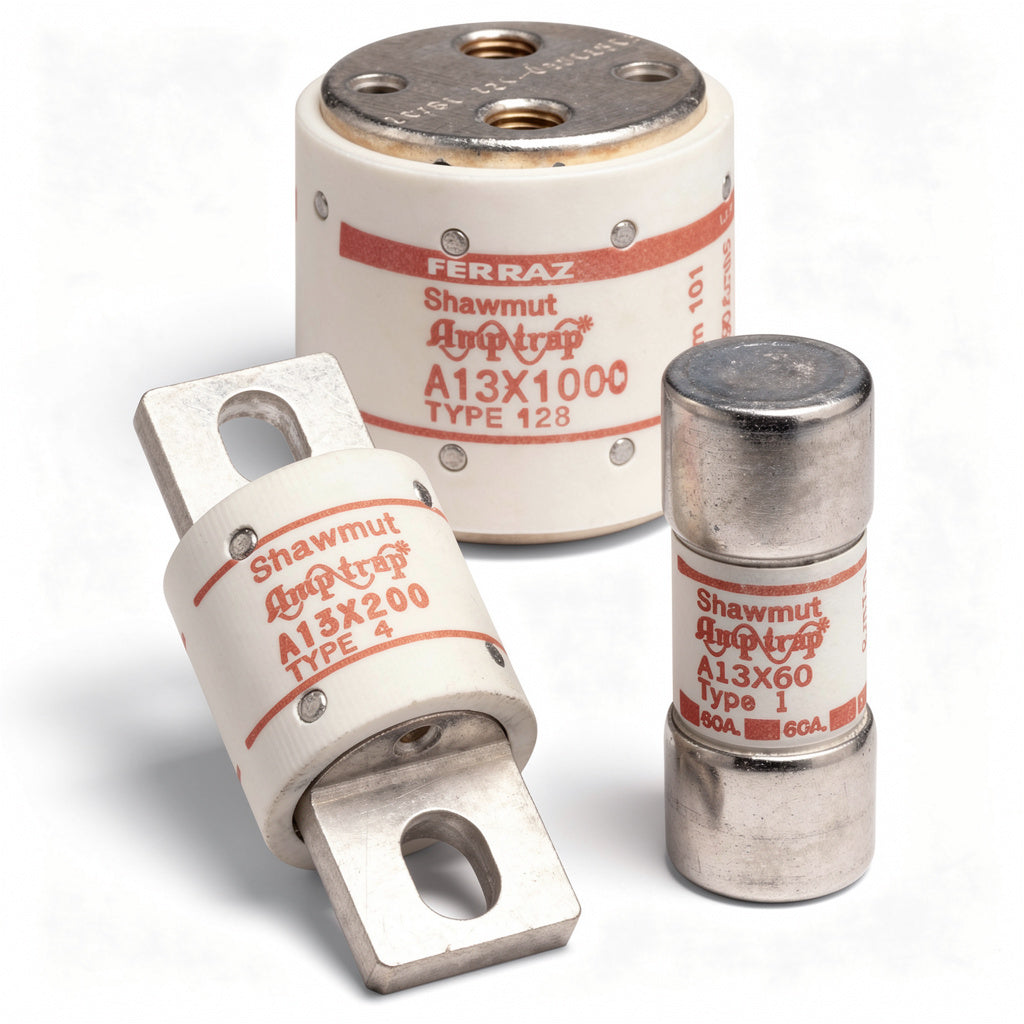

Mersen A13X90-4 Amp-trap Form 101 Semiconductor Protection Fuse, 90A, 130V AC/100V DC
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A13X90-4 is a high-performance semiconductor protection fuse from the Amp-trap Form 101 series, engineered to safeguard diodes and rectifiers in demanding industrial power applications. Featuring a Type 4 bolt-in mounting configuration, this fast-acting, current-limiting fuse delivers low I²t values to minimize thermal stress on protected components during short-circuit events.
| Product ID (MPN) | A13X90-4 |
| Rated Current | 90A |
| Voltage Rating | 130V AC / 100V DC |
| Interrupting Rating (I.R.) | 8kA AC / 10kA DC |
| Mounting Type | Type 4 (Blades, bolt-in) |
| Dimensions (Length A) | 2.66 in (67.6 mm) |
| Power Dissipation | 3.9W |
| Melting I²t | 1,300 A²s |
| Clearing I²t | 6,500 A²s |
| Recommended Fuse Block | P243D |
