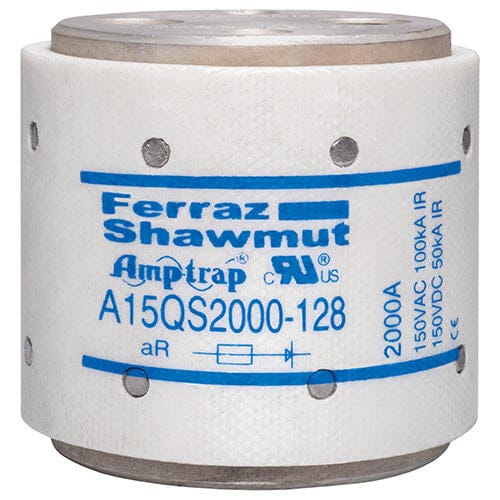

Mersen A15QS2000-128 Amp-Trap Form 101 High Speed Semiconductor Fuse, 150V AC/DC, 2000A
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A15QS2000-128 is an industrial-grade high-speed semiconductor fuse from the Amp-Trap Form 101 series, designed for the high-capacity protection of power semiconductors. Optimized for low I²t let-through, this 2000A fuse features a Style 128 mounting configuration with specialized tap dimensions to ensure reliable electrical contact and thermal performance in heavy-duty power electronic applications.
| Product ID (MPN) | A15QS2000-128 |
| Series | Amp-Trap Form 101 (A15QS) |
| Current Rating (Amps) | 2000 A |
| Voltage Rating (AC/DC) | 150 V |
| Mounting Type | Style 128 (Tapped Hole) |
| Dimen. Figure | 4 |
| Interrupting Rating | 100 kA |
| Body Diameter (B) | 2.00 in (50.8 mm) |
| Overall Length (A) | 1.88 in (47.88 mm) |
| Tap Specification | 3/8-24-1/2 Deep |
