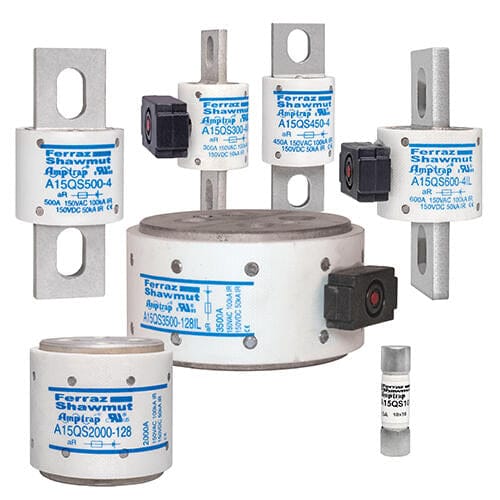

Mersen A15QS2500-128 Amp-Trap Form 101 High Speed Semiconductor Fuse, 150V AC/DC, 2500A
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A15QS2500-128 is a high-capacity semiconductor fuse from the Amp-Trap Form 101 series, engineered for the robust protection of large power semiconductors. Featuring a specialized Style 128 mounting configuration with tapped holes, this 2500A fuse provides extremely low I²t let-through values to protect high-power rectifiers and converters in industrial electrical systems.
| Product ID (MPN) | A15QS2500-128 |
| Series | Amp-Trap Form 101 (A15QS) |
| Current Rating (Amps) | 2500 A |
| Voltage Rating (AC/DC) | 150 V |
| Mounting Type | Style 128 Tapped Bolt-On |
| Dimen. Figure | 4 |
| Interrupting Rating | 100 kA |
| Overall Length (A) | 1.88 in (47.88 mm) |
| Body Diameter (B) | 3.00 in (76.2 mm) |
| Tap Specification | 1/2-20-1/2 Deep |
