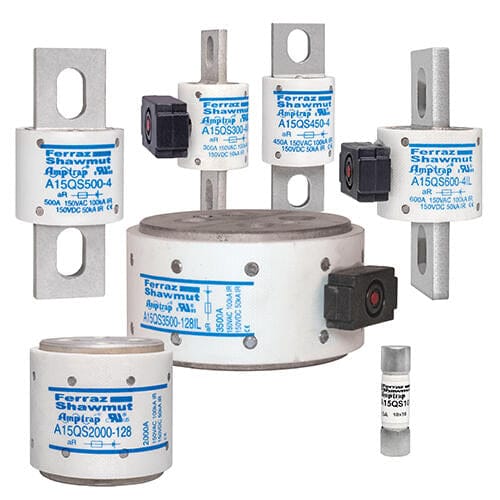

Mersen A15QS3000-128 Amp-Trap Form 101 High Speed Semiconductor Fuse, 150V AC/DC, 3000A
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A15QS3000-128 is an ultra-high capacity semiconductor fuse from the Amp-Trap Form 101 series, engineered for the protection of heavy-duty power semiconductors in high-current industrial systems. Specifically designed for extreme electrical environments, this 3000A fuse features a specialized Style 128 mounting configuration to provide superior thermal management and reliable short-circuit protection for large-scale rectifiers and power conversion equipment.
| Product ID (MPN) | A15QS3000-128 |
| Series | Amp-Trap Form 101 (A15QS) |
| Current Rating (Amps) | 3000 A |
| Voltage Rating (AC/DC) | 150 V |
| Mounting Type | Style 128 Bolted |
| Dimen. Figure | 4 |
| Interrupting Rating | 100 kA |
| Overall Length (A) | 1.88 in (47.88 mm) |
| Body Diameter (B) | 3.00 in (76.2 mm) |
| Tap Size | 1/2-20-1/2 Deep |
