Mersen A15QS5-2 High Speed Ferrule Fuse, 5 A, 150 VAC/150 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

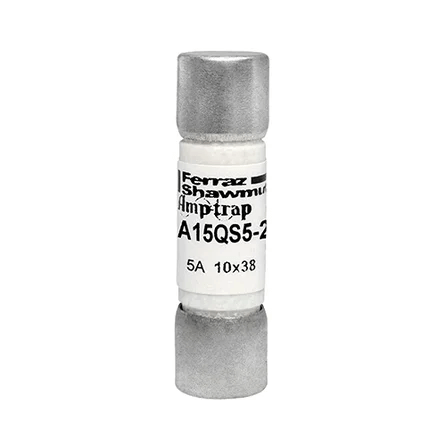

Mersen A15QS5-2 is a Form 101 high speed ferrule fuse from the Amp-Trap A15QS 150 VAC/150 VDC series. Rated at 5 A, it provides current-limiting protection for diodes and other semiconductor devices. Its compact 1.50 in × 0.41 in body supports installation where panel space is limited.
| Manufacturer Part Number | A15QS5-2 |
| Brand | Mersen |
| Series | Amp-Trap A15QS 150 VAC/150 VDC |
| Fuse Type | High speed, current limiting |
| Ampere Rating | 5 A |
| Rated Voltage | 150 V AC / 150 V DC |
| AC Interrupting Rating | 100 kA |
| DC Interrupting Rating | 50 kA |
| Connection | Form 101 ferrule |
| Mounting | Clip mounting |
| Dimensions | Length: 1.50 in (38.1 mm); diameter: 0.41 in (10.4 mm) |
Typical applications include protection of diodes and other semiconductor devices operating at up to 150 VAC or 150 VDC, particularly where low I²t, controlled arc voltage, and compact ferrule construction are required.
Apexon Supply provides B2B sourcing and replacement support for Mersen A15QS5-2 fuses. Buyers should verify the current rating, voltage rating, interrupting capacity, dimensions, and mounting configuration against the original equipment requirements.
Send the MPN, required quantity, and application requirements to request a B2B quote and technical alignment support.
