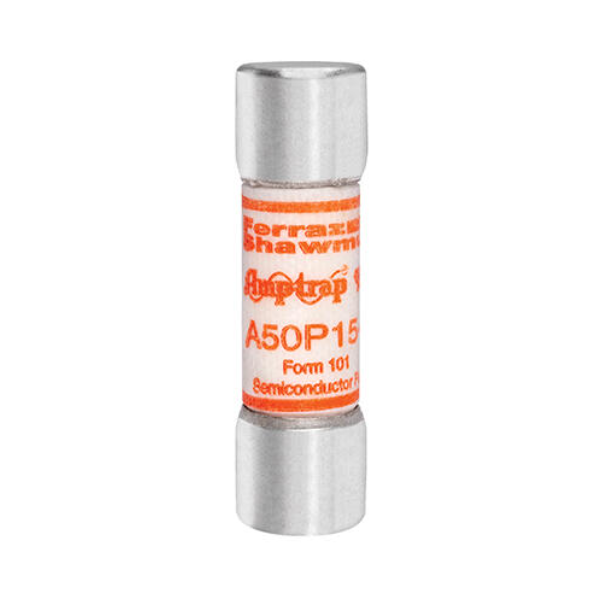

Mersen Ferraz Shawmut A50P15-1 High Speed Semiconductor Fuse, 15A, 500VAC/450VDC, Ferrule, Clip Mount, 50kA IR, Tin-Plated Copper, 14.2×50.8mm, Amp-Trap A50P Series – Pack of 10

Mersen Ferraz Shawmut A50P15-1 High Speed Semiconductor Fuse, 15A, 500VAC/450VDC — Pack of 10

The A50P15-1 is a high-speed semiconductor protection fuse from Mersen (Ferraz Shawmut), designed to deliver low I2t let-through and reliable short-circuit protection in power electronics. Part of the Amp-Trap A50P series, it is ideal for DC drives, UPS systems, rectifiers, and inverters where fast clearing is critical to protect IGBTs, SCRs, and diodes.

Key Electrical Ratings

• Ampere rating: 15 A
• Voltage ratings: 500 VAC (UL), 450 VDC (typical series rating)
• Frequency: 50/60 Hz
• Interrupting rating (max IR): 50 kA AC
• Characteristic: High Speed (semiconductor fuse)
• Application: AC/DC per stated ratings

Construction & Mounting

• Terminal type: Ferrule
• Mounting: Clip mount (ferrule holders)
• Terminal material: Tin-plated copper
• Body/insulating material: GMG
• Product group: Semiconductor Protection Fuses

Mechanical & Packaging

• Body diameter: 14.2 mm
• Length: 50.8 mm
• Unit weight: 0.0181 kg
• UPC/EAN: 782001949914
• Pack quantity: 10 units
• Sell pack weight: 0.1905 kg
• Sell pack dimensions (W×L×H): 52.3 × 76.2 × 30.2 mm

Applications

• DC drives and soft starters
• UPS and energy storage systems
• Rectifiers, inverters, and power converters
• Protection of sensitive power semiconductors requiring low I2t

Notes

• Use with compatible ferrule fuse clips/holders rated for 500 VAC.
• Verify coordination, thermal performance, and I2t with the equipment manufacturer and the Mersen datasheet.

Package Contents

• 10 × Mersen Ferraz Shawmut A50P15-1 high speed semiconductor fuses (15 A, 500 VAC/450 VDC)
