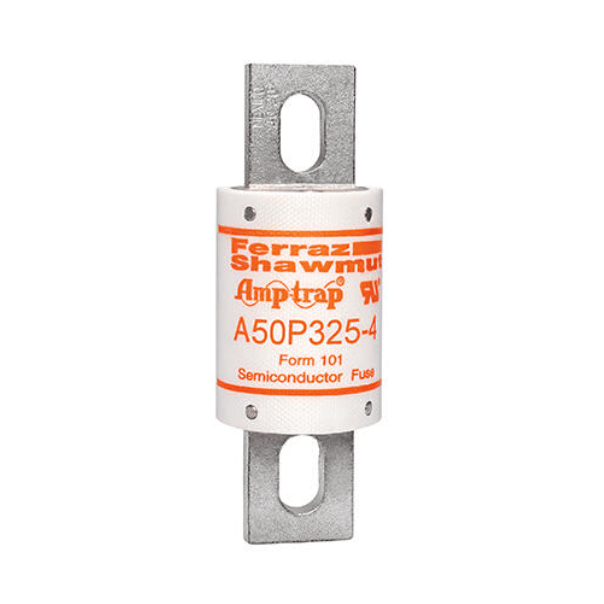

Mersen Amp-Trap® A50P A50P325-4 High-Speed Blade Fuse, 325A 500VAC / 450VDC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A50P325-4 is a high-performance Amp-Trap Form 101 high-speed semiconductor fuse designed for demanding industrial power electronics. Optimized for low I2t protection and superior reliability, this bolted blade fuse is the industry standard for safeguarding DC drives, uninterruptible power supplies (UPS), and high-capacity rectification equipment.
| Product ID (MPN) | A50P325-4 |
| Order Code / EAN | 782001946258 |
| Ampere Rating | 325 A |
| Rated Voltage AC (UL) | 500 V |
| Rated Voltage DC (UL) | 450 V |
| Interrupting Rating (AC) | 100 kA |
| Interrupting Rating (DC) | 79 kA |
| Speed/Characteristic | High Speed |
| Connection/Terminal Type | Bolted Blade |
| Body/Insulating Material | GMG (Glass Melamine) |
| Product Diameter | 1.5 in |
