Mersen Ferraz Shawmut A50P600-4 High Speed Semiconductor Fuse, 600A, 500VAC/450VDC, Form 101 Blade, Bolted, 50kA IR, Tin-Plated Copper, 50.8×113.5mm, Amp-Trap A50P Series – Pack of 4

Mersen Ferraz Shawmut A50P600-4 High Speed Semiconductor Fuse, 600A, 500VAC/450VDC — Pack of 4

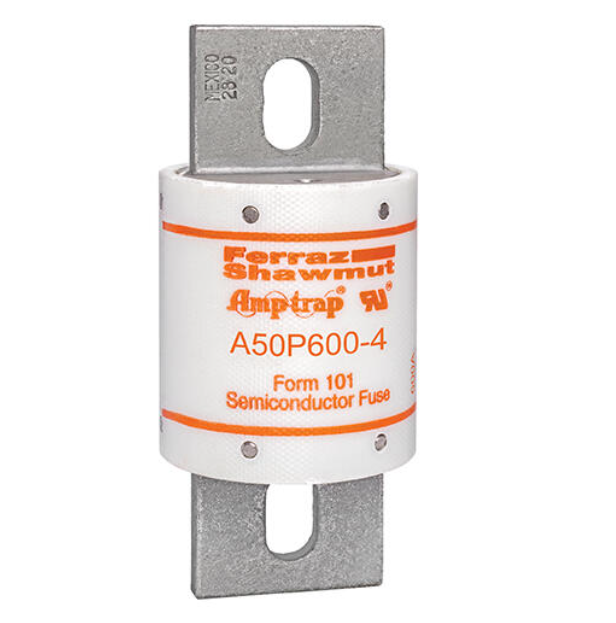

The Mersen (Ferraz Shawmut) A50P600-4 is a Form 101 high-speed semiconductor fuse engineered for DC drives, UPS systems, and power conversion equipment requiring low I2t and reliable short-circuit protection. As part of the Amp-Trap A50P series, it combines fast-acting performance with robust construction for demanding AC and DC applications.

Key Electrical Ratings

• Ampere rating: 600 A
• Voltage ratings: 500 VAC (UL), 450 VDC (UL)
• Frequency: 50/60 Hz
• Interrupting rating (max IR): 50 kA AC
• Characteristic: High Speed (semiconductor protection)
• Application: AC/DC suitable within stated ratings

Construction & Mounting

• Terminal type: Blade, Form 101
• Mounting method: Bolted
• Terminal material: Tin-plated copper
• Body/insulating material: GMG
• Product group: Semiconductor Protection Fuses

Mechanical & Packaging

• Body diameter: 50.8 mm
• Length: 113.5 mm
• Unit weight: 0.5443 kg
• UPC/EAN: 782001946265
• Pack quantity: 4 units
• Sell pack weight: 2.2861 kg
• Sell pack dimensions (W×L×H): 114.3 × 209.6 × 50.8 mm

Applications

• DC drives and soft starters
• UPS and energy storage systems
• Rectifiers, inverters, and power converters
• Protection of IGBTs, SCRs, and diodes requiring low I2t let-through

Notes

• Use with suitable bolted fuse blocks/busbar terminations.
• Verify coordination, thermal performance, and permissible I2t against the equipment manufacturer’s requirements and Mersen datasheet.

Package Contents

• 4 × Mersen Ferraz Shawmut A50P600-4 high speed semiconductor fuses (600 A, 500 VAC/450 VDC)
