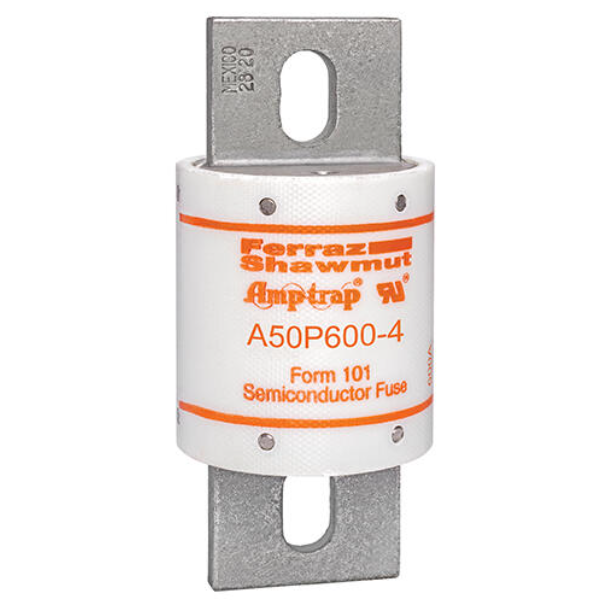

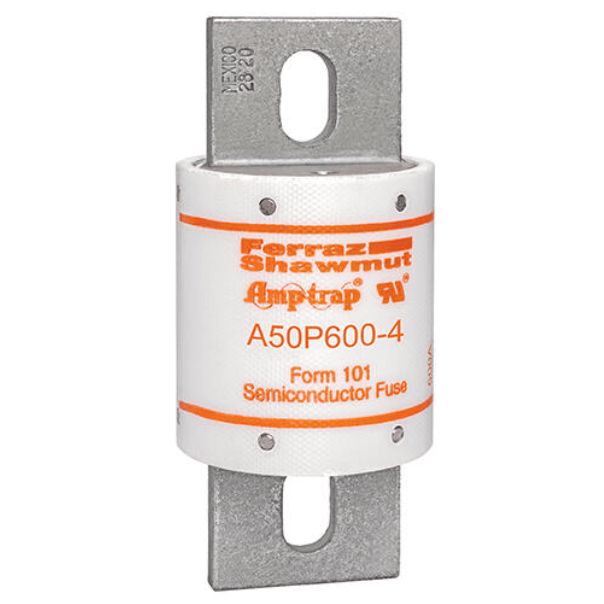

Mersen Amp‑Trap® A50P A50P600-4 High‑Speed Blade Fuse, 600A 500VAC / 450VDC — Pack of 5

Product overview

• Part number: A50P600-4
• Series: Amp‑Trap® A50P (Form 101)
• Manufacturer: Mersen
• Product type: High‑speed blade fuse
• Ampere rating: 600 A
• Rated voltage: 500 V AC (UL), 450 V DC (UL)
• Interrupting capacity (AC Max I.R.): 50 kA
• Frequency: 50/60 Hz
• Speed/Characteristic: High Speed
• Connection/terminal: Blade, tin‑plated copper
• Mounting: Bolted (blade terminal)
• Body/insulating material: GMG (glass‑mat reinforced)
• Dimensions: Length 4.47 in (≈113.5 mm); Diameter 2.00 in (≈50.8 mm)
• Product weight: 1.20 lb (per unit)
• Sell pack quantity: 4 EA
• Sell pack weight: 5.04 lb (for 4 units)
• EAN/UPC: 782001946265
• Product group: Semiconductor Protection Fuses

Key features

• High‑speed characteristic (low I2t) for rapid fault clearing to protect power semiconductors and other sensitive power electronics.
• 50 kA interrupting rating suitable for many industrial power systems.
• Tin‑plated copper blade terminals provide low contact resistance and corrosion resistance.
• Robust GMG insulating body and Form 101 design for straightforward replacement in equipment specified for Amp‑Trap A50P fuses.

Typical applications

• DC drives and motor control systems
• Uninterruptible Power Supplies (UPS)
• Inverters, converters and power‑conversion equipment
• Semiconductor protection and industrial power distribution
• Field replacements and maintenance spares

Mechanical & packing data

• Product length: 4.47 in (≈113.5 mm)
• Product diameter: 2.00 in (≈50.8 mm)
• Mounting: Bolted (blade terminal)
• Sell pack quantity: 5 EA
• Sell pack weight: 5.04 lb

Installation & safety notes

• Replace only with identical part number and rating to maintain intended protection characteristics.
• Install in compatible bolted blade holders and follow equipment manufacturer torque and mounting instructions.
• Verify compatibility with system voltage, current rating and prospective fault current before installation.
• For full time‑current curves, I2t values, ambient derating and approvals, consult the official Mersen datasheet.

What’s included

• 4 × Mersen Amp‑Trap® A50P A50P600-4 high‑speed blade fuses, 600 A, 500 VAC / 450 VDC

Verification

• Confirm part marking A50P600-4 and EAN/UPC (782001946265) on delivery. Request the official Mersen datasheet for complete electrical characteristics and certifications.
