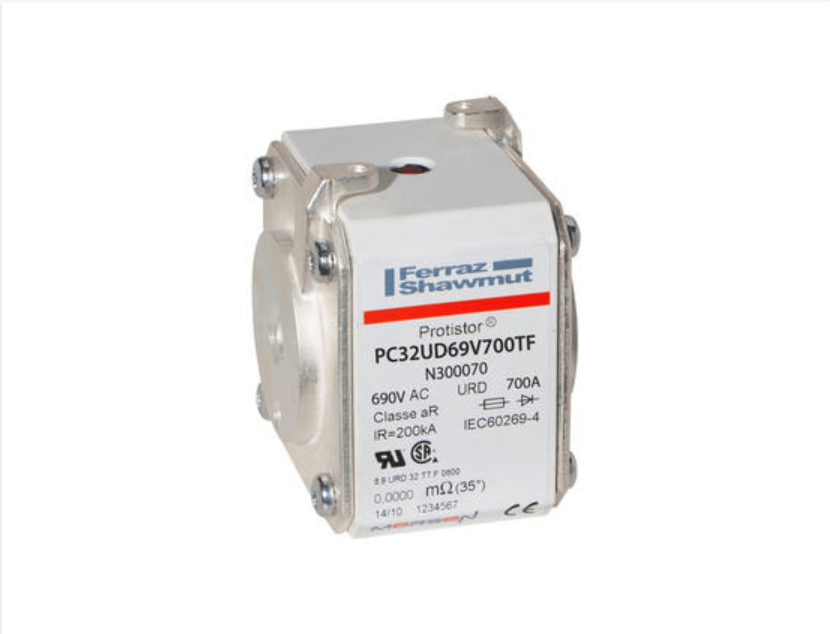

Mersen PC32UD69V700TF Protistor Fuse, 700A 690V AC, Size 32 aR, High-Speed Square Body with Striker
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen PC32UD69V700TF is a Size 32 Protistor high-speed aR fuse rated 700A/690V, designed for critical protection of inverters, motor drives, and UPS systems. With silver-plated contacts and a striker, it delivers extreme current limitation and ultra-low I²t, ensuring maximum semiconductor protection in demanding industrial applications.
| Product ID (MPN) | PC32UD69V700TF |
| Order Code | N300070 |
| Rated Current In | 700 A |
| Rated Voltage AC (IEC) | 690 V |
| Rated Voltage AC (UL) | 700 V |
| Pre-arcing I²t | 76 kA²s |
| Clearing I²t at Rated Voltage | 440 kA²s |
| Rated Breaking Capacity AC | 200 kA |
| Power Dissipation at In | 100 W |
| Fuse Size | Size 32 |
| Terminal Type | Type TTF M10 threaded terminals |
| Terminal Design | Standard Terminal |
| Material | Silver plated contact surfaces, non-magnetic hardware, solidified sand |
| UL Certified | Yes |
| Weight | 0.55 kg |
