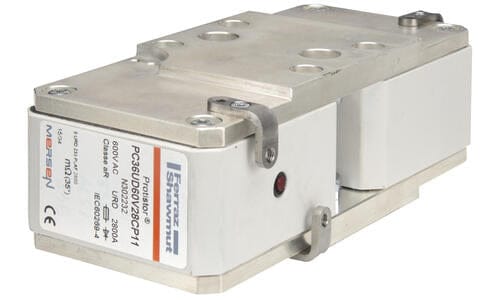

Mersen PC36UD60V28CP11 Square Body High-Speed Fuse, 600VAC 2800A aR, Size 2x33, With Striker Plates

Overview: The Mersen PC36UD60V28CP11 is a high-speed semiconductor protection fuse from the Protistor® series, designed for demanding AC applications. It features a square ceramic body in size 2x33, with a very high ampere rating of 2800A and an aR (ultra-rapid) characteristic for protecting sensitive power electronics like diodes, thyristors, and IGBTs. The fuse includes striker plates with metric threaded holes for bolted connection and provides visual/mechanical indication of operation. It meets both IEC and UL voltage standards.

Key Features:

• High Current Protection: Rated for 2800A AC.
• High Voltage: 600V AC (IEC) / 650V AC (UL).
• Ultra-Rapid Characteristic (aR): For semiconductor protection.
• Robust Construction: Square ceramic body, silver-plated copper terminals.
• Integrated Indication: Striker plate system for operation signaling.
• High Breaking Capacity: 160 kA.
• Standard Size: 2x33 for compatibility with standard fuse bases.
