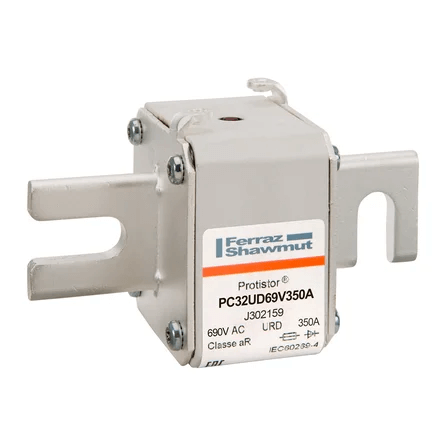

Mersen PC32UD69V350A / J302159 Protistor High-Speed Square Body Fuse, 350A, 690V AC
Regular price
$125.00 USD
Regular price
Sale price
$125.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen PC32UD69V350A (Item Number J302159) is a high-speed Protistor square body fuse engineered for the protection of power semiconductors. Operating at a rated current of 350A and 690V AC, this size 32 aR class fuse features extremely low I²t values and outstanding current-limiting capabilities. It is ideal for safeguarding inverters, motor drives, UPS systems, and other sensitive industrial power electronics.
| Product ID (MPN) | PC32UD69V350A |
| Order Code | J302159 |
| Brand | Mersen |
| Size | Size 32 |
| Rated Current In | 350 A |
| Rated Voltage AC (IEC) | 690 V |
| Rated Voltage AC (UL) | 700 V |
| Terminal/Blade Type | Type DIN80 blades |
| Terminal Design | Standard Terminal |
| Pre-arcing I²t | 8.9 kA²s |
| Clearing I²t at Rated Voltage | 53.7 kA²s |
| Rated Breaking Capacity AC | 200 kA |
| Power Dissipation at In | 74 W |
| Material | Silver plated contact surfaces, non-magnetic hardware, solidified sand |
| UL Certified | Yes |
| Weight | 0.53 kg |
