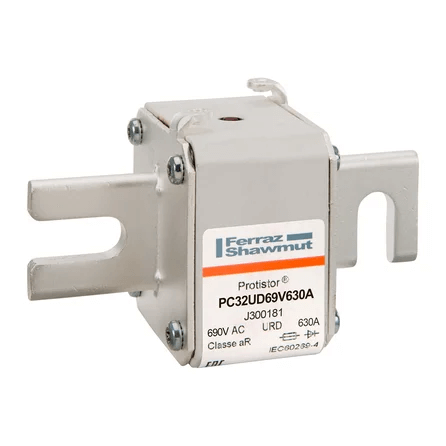

Mersen PC32UD69V630A Protistor Fuse, 630A 690V AC, Size 32 aR, High-Speed Square Body with Striker
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen PC32UD69V630A is a Size 32 Protistor high-speed semiconductor fuse rated for 630A and 690V AC, featuring DIN80 blades for secure bolted installation. Engineered with an aR class characteristic, it provides ultra-low I²t and superior current limitation to protect critical power electronics such as inverters, motor drives, and UPS systems.
| Product ID (MPN) | PC32UD69V630A |
| Order Code | J300181 |
| Rated Current In | 630 A |
| Rated Voltage AC (IEC) | 690 V |
| Rated Voltage AC (UL) | 700 V |
| Pre-arcing I²t | 54 kA²s |
| Clearing I²t at Rated Voltage | 310 kA²s |
| Rated Breaking Capacity AC | 200 kA |
| Power Dissipation at In | 105 W |
| Fuse Size | Size 32 |
| Terminal/Blade Type | Type DIN80 blades |
| Terminal Design | Standard Terminal |
| Material | Silver plated contact surfaces, non-magnetic hardware, solidified sand |
| UL Certified | Yes |
| Weight | 0.53 kg |
