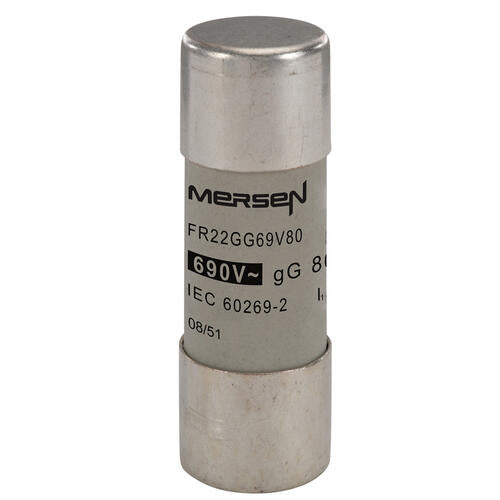

Mersen FR22GG69V80 / Q217180 gG Cylindrical Fuse-Link, 80 A, 690 V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen FR22GG69V80 is a size 22x58 gG cylindrical fuse-link for low-voltage circuit protection. Its Catalogue No is FR22GG69V80 and Item number is Q217180. This exact variant is rated 80 A at 690 V AC (IEC) and has no indication system.
| Catalogue No | FR22GG69V80 |
| Item number | Q217180 |
| Fuse Size | 22x58 |
| Speed/Characteristic | gG |
| Rated voltage AC IEC | 690 V |
| Rated voltage DC IEC | 250 V |
| Ampere Rating | 80 A |
| Rated Breaking Capacity AC | 120 kA |
| Power Dissipation at In | 7.4 W |
| Body Material | Ceramic |
| Contact Material | Silver-plated contacts |
| Indication System | No |
Mersen specifies gG cylindrical fuse-links for protection of cables, motors, and low-voltage networks against overcurrents and short-circuit currents.
Apexon Supply provides B2B sourcing, replacement sourcing, and technical alignment support for Mersen FR22GG69V80. Buyers should compare the verified 80 A rating, 690 V AC rating, gG characteristic, 22x58 size, and breaking capacity against the original equipment requirements.
Send Catalogue No FR22GG69V80 or Item number Q217180, required quantity, and application requirements to request a B2B quote for sourcing support.
