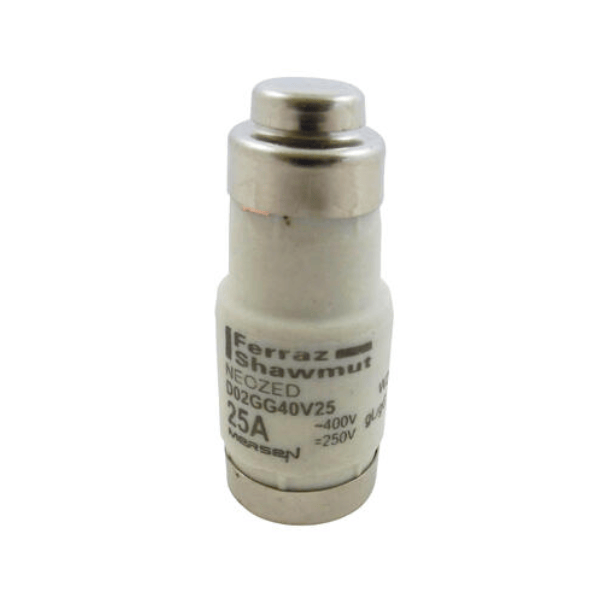

Mersen NEOZED D02GG40V25 gG Fuse-link, 25A 400VAC 250VDC, D02 Size, - Pack of 10

Mersen NEOZED D02GG40V25 gG Fuse-link, 25A 400VAC 250VDC

The Mersen NEOZED D02GG40V25 gG Fuse-link provides dependable, general-purpose overcurrent and short-circuit protection in low-voltage distribution units. As a key component of the modern D0 fuse-system, it is specifically engineered for installations where fuse-links may be accessed and replaced by non-trained individuals, emphasizing ease of use and safety. This D02 size fuse-link delivers robust protection for circuits operating at 400VAC and 250VDC, making it suitable for a diverse array of residential, commercial, and light industrial applications. Its gG characteristic ensures comprehensive protection for cables and conductors, with clear identification provided by a yellow color code for the 25A rating.

Key Features:

• General Purpose gG Characteristic: Offers full-range protection for electrical cables and conductors against both sustained overloads and damaging short-circuit currents, ensuring comprehensive circuit safety.
• NEOZED D0 System Compatibility: Integral to the user-friendly D0 fuse-system, designed for safe and straightforward replacement by unqualified personnel within low-voltage distribution networks.
• Dual Voltage Rating: Versatile protection for both AC networks up to 400V (and 440VAC applications) and DC networks up to 250V, accommodating various power system configurations.
• High Breaking Capacity: Features a robust interrupting rating of 50kA at 400VAC and 250VDC, effectively clearing high fault currents and preventing extensive equipment damage.
• Visual Indication: Clearly identified by a yellow color code at its base, which corresponds to its 25A current rating, simplifying correct identification and facilitating safe replacement procedures.
• Standardized D02 Size: Adheres to DIN D02 dimensions, ensuring seamless compatibility with corresponding D0 fuse bases, fuse holders, and accessories.
• Robust Construction: Manufactured with a high-quality ceramic body and silver-plated contact elements for enhanced mechanical strength, superior electrical conductivity, and long-term operational reliability.

Detailed Technical Specifications:

Electrical Characteristics:

• Manufacturer: Mersen
• Series: NEOZED D0
• Item Number: W213160
• Catalogue Number: D02GG40V25
• Rated Current (IN): 25A
• Rated Voltage (VAC IEC): 400V AC (suitable for 440VAC)
• Rated Voltage (VDC IEC): 250V DC
• Fuse Characteristic: gG (General Purpose, Full-Range Breaking Capacity)
• Breaking Capacity (Interrupting Rating): 50kA @ 400VAC / 250VDC
• Rated Power Loss (at rated current): 2.3W (typical)
• Identification Color Code: Yellow
• Operating Temperature Range: -5°C to +40°C (typical for fuse systems)

Mechanical Specifications:

• Body Material: Ceramic
• Contact Elements: Silver-plated
• Form Factor: DIN D0 Fuse-link
• Size: D02 (Standardized dimensions according to VDE 0636-3 and IEC 60269)
• Mounting: Designed for standard D0 fuse bases/holders

Standards & Compliance:

• International Standards: IEC 60269-1 (Low-voltage fuses - Part 1: General requirements), VDE 0636-3
• Certification: RoHS Compliant

Applications:

The Mersen NEOZED D02GG40V25 gG Fuse-link is a versatile and essential protective device for general-purpose applications across various residential, commercial, and light-industrial environments, including:

• Residential electrical installations, such as consumer units and branch circuit protection.
• Commercial building electrics, including lighting circuits, power outlets, and small appliance protection.
• Protection for control circuits, small motors, and other light industrial machinery.
• Heating, ventilation, and air conditioning (HVAC) systems.
• DC control systems and photovoltaic (PV) installations (up to 250VDC).
• Any application requiring reliable overcurrent and short-circuit protection for cables and conductors.

This product is supplied as a pack of 10 units.
