MIRO NH00C is a low voltage NH fuse link for industrial circuit protection and replacement sourcing. This product page identifies the RT16-00C / NH00C fuse link with a verified 125A current rating, 500/660V rated voltage, gL class reference, and NH00 size configuration for procurement review and technical comparison.
| Product ID / MPN | NH00C |
| Secondary ID | RT16-00C |
| Brand / Category | MIRO / Low Voltage Fuse Link |
| Rated Current | 125A |
| Rated Voltage | 500/660V |
| Fuse Class | gL |
| Fuse Size | NH00 / 000 |

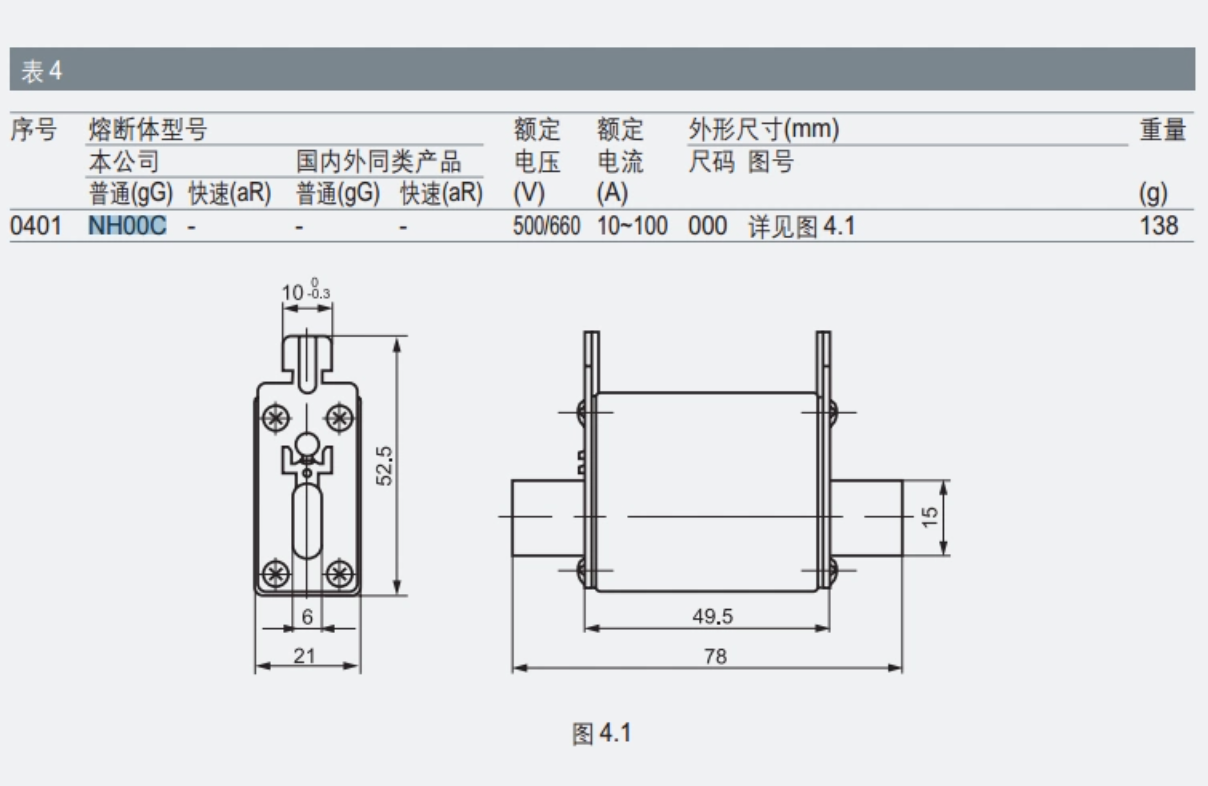

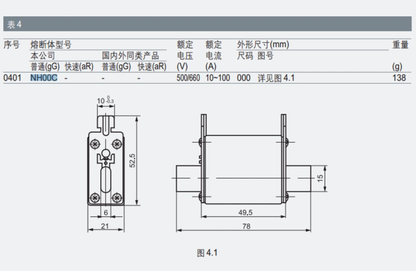

| Dimensions | 78 mm overall length, 49.5 mm body length, 21 mm width, 52.5 mm height |
| Mechanical Specs | 15 mm blade height, 10 mm blade width, 6 mm slot width |
| Weight | 138 g |
This low voltage fuse link is typically used in electrical distribution, machinery protection, control panels, and MRO replacement applications where NH00 fuse-link size, 125A current rating, and 500/660V voltage rating must align with the original installation.
Apexon Supply provides B2B sourcing and replacement support for MIRO NH00C fuse links, helping procurement teams review verified specifications, part numbers, and technical alignment before sourcing.
Send the MPN, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
