MIRO NH00C 16A Low Voltage Fuse Link, 500/660V, gL/gG
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
MIRO NH00C 16A is a compact low voltage NH fuse link for industrial circuit protection and replacement sourcing. This RT16-00C / NH00 fuse link is rated at 16A and 500V AC / 660V AC, with gL/gG full-range general protection characteristics, size-000 configuration, and IEC 60269-2-1 / VDE 0636-2 standards reference for procurement review and technical comparison.
| Product ID / MPN | NH00C 16A |
| Secondary ID | RT16-00C |
| Brand / Category | MIRO / Low Voltage Fuse Link |
| Rated Current | 16A |
| Rated Voltage | 500V AC / 660V AC |
| Fuse Characteristic | gL/gG full-range general protection |
| Rated Breaking Capacity | 120 kA at 500V / 50 kA at 660V |
| Power Dissipation | 2.0 W at 16A |
| Rated Frequency | 45-62 Hz |
| Fuse Size | 000 / NH00 |

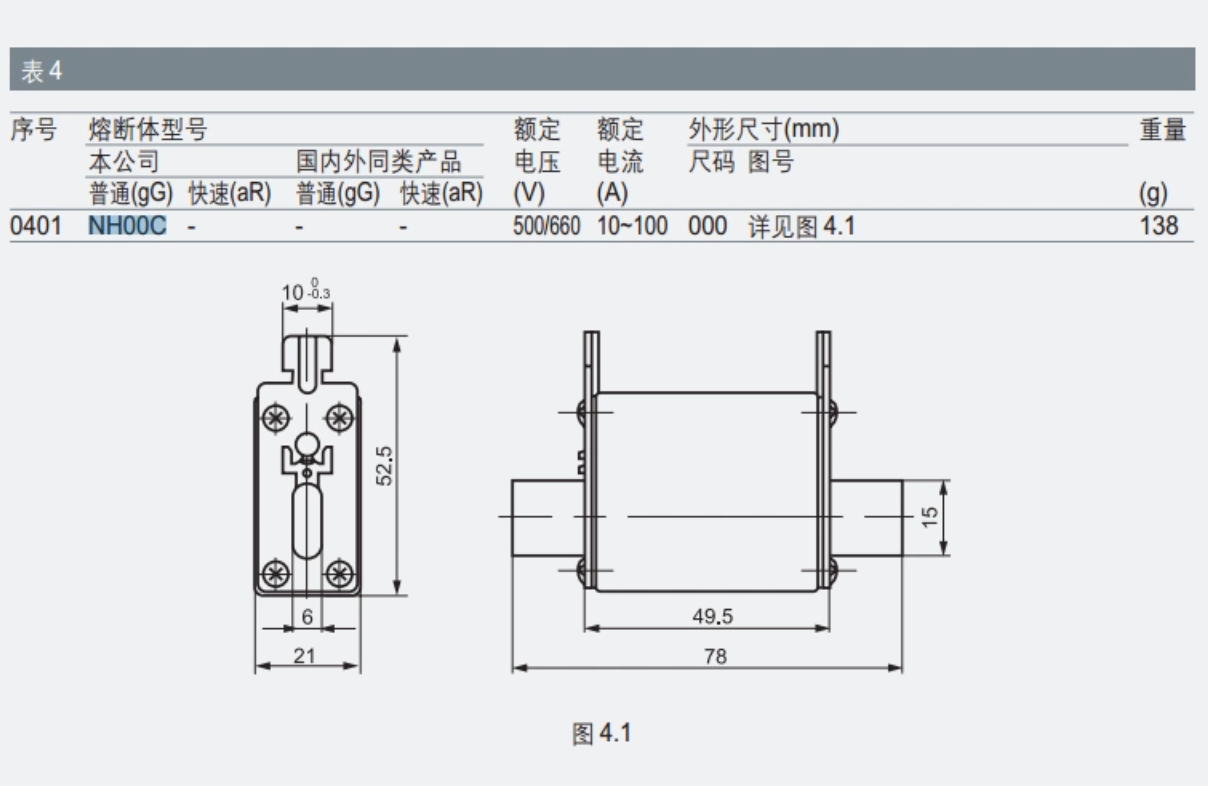

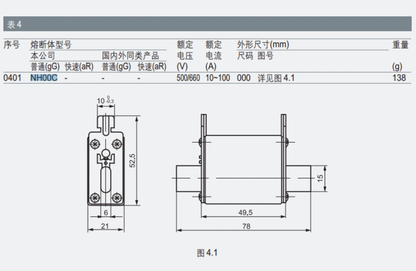

| Overall Dimensions | 78.5 mm × 35 mm × 49.5 mm |
| Body Material | High-strength ceramic |
| Blade Material | Silver-plated copper |
| Weight | 128 g |
| Standards / Certifications | IEC 60269-2-1, VDE 0636-2 |
This low voltage fuse link is typically used for selective protection of small-capacity feeders, control circuits, motor loads, control panels, and MRO replacement applications where NH00 size, 16A current rating, and 500V/660V voltage ratings must align with the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for MIRO NH00C 16A fuse links, helping procurement teams review verified specifications, part numbers, and technical alignment before sourcing.
Send the MPN, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
