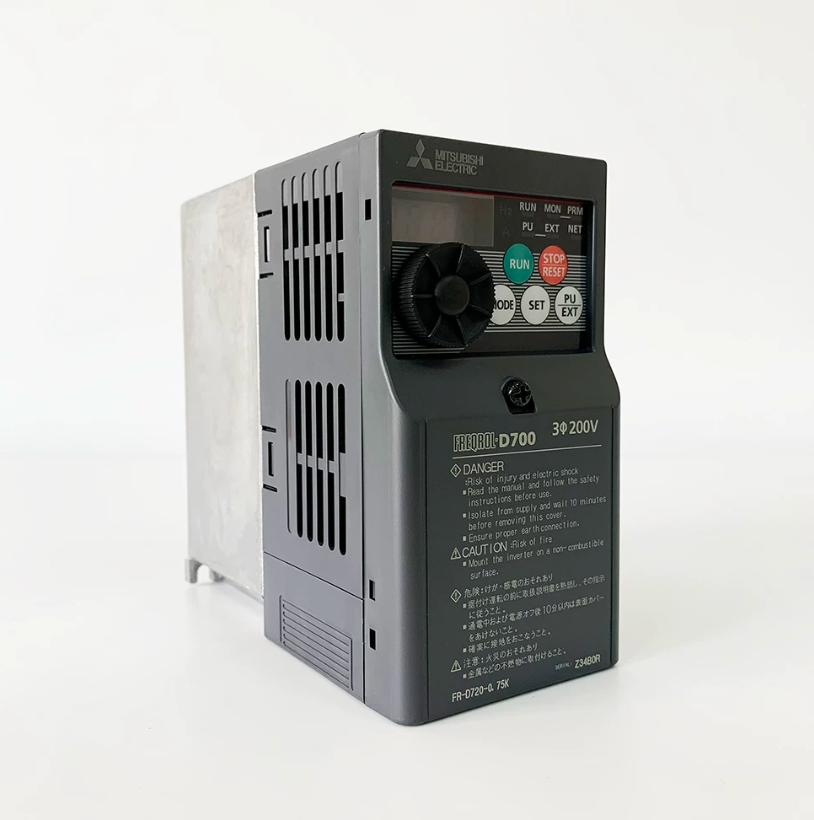

Mitsubishi Electric FR-D720-0.75K / 217402 FR-D700 Series Compact Inverter, 3-Phase 200-240V AC, 0.75 kW, 4.2 A
Regular price
$340.00 USD
Regular price
Sale price
$340.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi Electric FR-D720-0.75K (Order Code: 217402) is a highly reliable compact inverter from the FR-D700 series, engineered for the precise control of 3-phase AC induction motors. Rated for a motor capacity of 0.75 kW and an output current of 4.2 A, this versatile micro-drive features magnetic flux vector control, integrated Safe Torque Off (STO), and standard Modbus-RTU capability for seamless network integration. Designed with space-saving IP20 architecture, resilient spring clamp terminals, and a clear 4-digit LED display, it delivers dependable performance and easy deployment for industrial automation and machinery applications.
| Product ID (MPN) | FR-D720-0.75K |
| Order Code | 217402 |
| Product Series | FR-D700 Series |
| Device Type | Compact Inverter |
| Rated Motor Capacity (ND) | 0.75 kW |
| Rated Output Current (ND) | 4.2 A |
| Input Phases | 3-Phase |
| Rated Voltage | 200 - 240 V AC |
| Permissible Voltage Range | 170 - 264 V AC |
| Control Method | Magnetic Flux Vector Control / V/F Control |
| Motor Type | Induction Motor |
| Safe Torque Off (STO) | Yes |
| Brake Chopper ED | 30% |
| Display | Built-in 4-Digit LED |
| Built-In Network | Modbus-RTU |
| Integrated Digital Inputs | 5 |
| Digital Outputs | 1 (Transistor), 1 (Relay) |
| Analogue I/O | 2 Inputs, 1 Output |
| I/O Terminal Block Type | Spring Clamp |
| Power Loss (ND) | 50 W |
| Standby Power Consumption | 5.5 - 10.5 W |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 68 mm x 128 mm x 162.5 mm |
| Weight | 1.0 kg |
