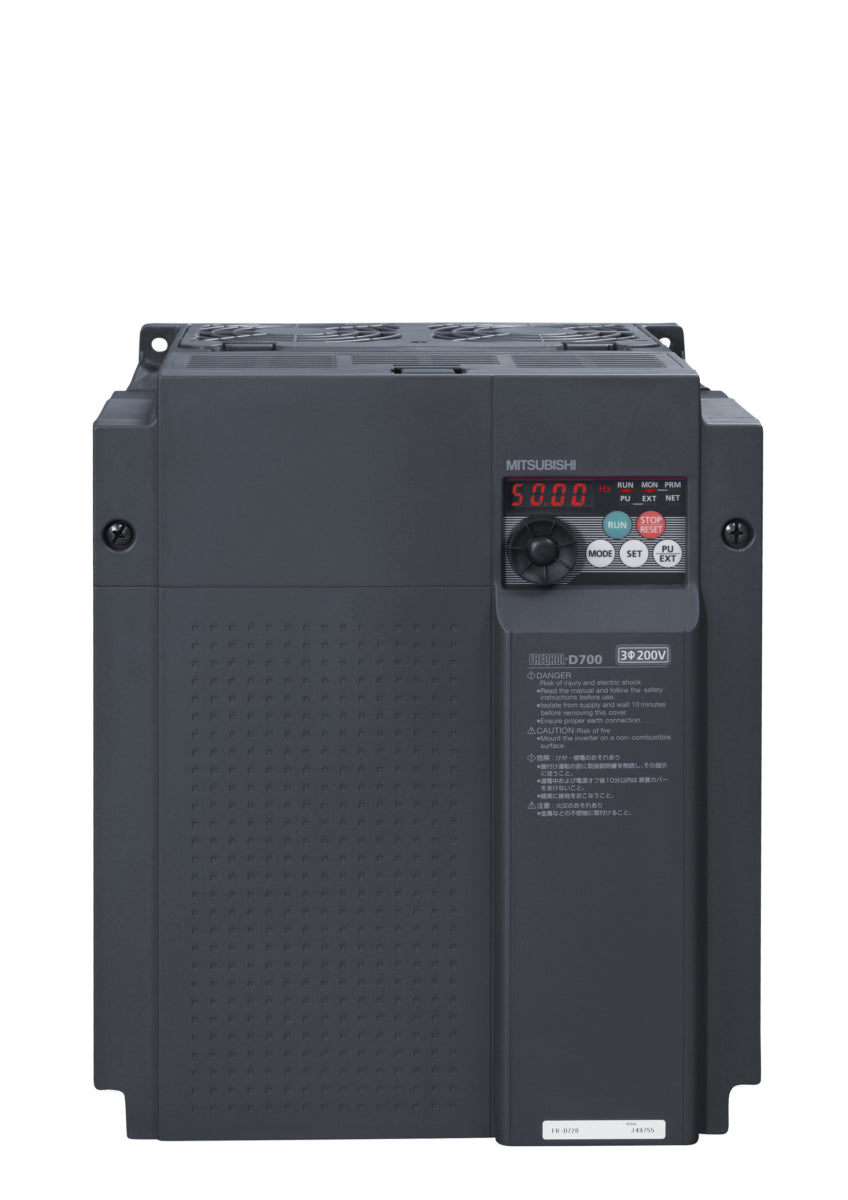

Mitsubishi Electric FR-D720-11K / 243781 FR-D700 Series Compact Inverter, 11 kW, 3-Phase 200-240V AC
Regular price
$900.00 USD
Regular price
Sale price
$900.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi Electric FR-D720-11K (Order Code: 243781) is a highly reliable compact inverter from the advanced FR-D700 series, engineered for high-performance sequence and speed control of industrial induction motors. Delivering an 11 kW rated motor capacity with 3-phase 200-240V AC input, it features integrated magnetic flux vector control, Safe Torque Off (STO), and Modbus-RTU communication. Housed in a robust IP20 enclosure with vibration-resistant spring clamp terminals, this drive ensures seamless integration, straightforward operations, and operational safety in demanding factory automation environments.
| Product ID (MPN) | FR-D720-11K |
| Order Code | 243781 |
| Rated Motor Capacity ND | 11 kW |
| Rated Output Current ND | 45 A |
| Rated Voltage Range | 200 - 240 V AC |
| Phases | 3 |
| Standby Power Consumption | 13 - 22.5 W |
| Power Loss ND | 520 W |
| Motor Type | Induction Motor |
| Control Method | Magnetic Flux Vector / Soft-PWM / V/F Control |
| Brake Chopper ED | 30% |
| Safe Torque Off (STO) | Yes |
| Built-In Network | Modbus-RTU (1x RS-485 Port) |
| Integrated Digital I/O | 5 Inputs / 1 Transistor Output / 1 Relay Output |
| Integrated Analogue I/O | 2 Inputs / 1 Output |
| Terminal Block Type | Spring Clamp |
| Display | Built-In 4 Digits LED |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 220 x 260 x 190 mm |
| Weight | 6.5 kg |
| Conformity | CE / UL/cUL / EAC / UKCA / RoHS |
