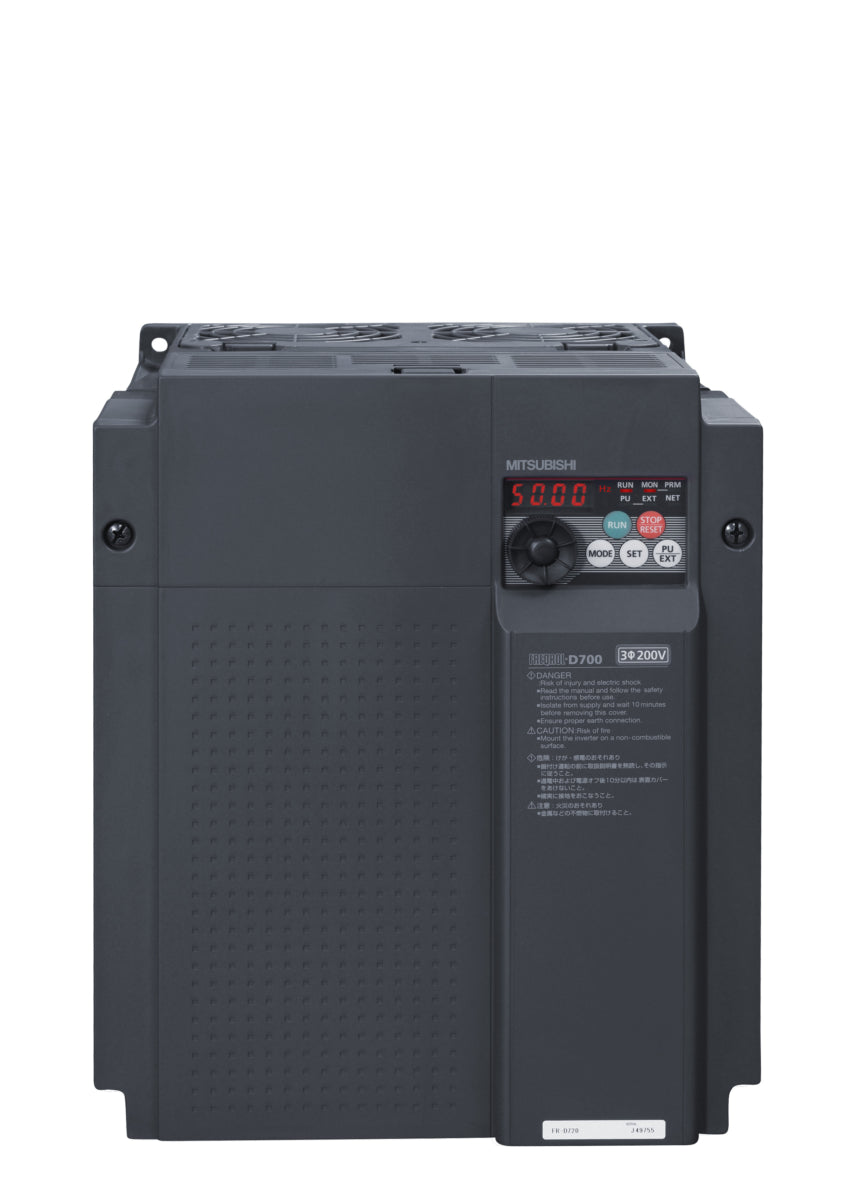

Mitsubishi Electric FR-D720-15K / 243782 FR-D700 Series Compact Inverter, 3-Phase 200-240V, 15kW
Regular price
$1,280.00 USD
Regular price
Sale price
$1,280.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi Electric FR-D720-15K (Order Code: 243782) is a highly reliable 3-phase compact inverter from the proven FR-D700 series, engineered for induction motor control across industrial automation networks. Equipped with Magnetic Flux Vector Control and built-in Safe Torque Off (STO), this 15kW variable frequency drive delivers highly precise speed regulation and comprehensive system safety. Its space-saving IP20 form factor features spring-clamp I/O terminals and native Modbus-RTU connectivity, streamlining cabinet installation, wiring, and network integration.
| Product ID (MPN) | FR-D720-15K |
| Order Code | 243782 |
| Product Series | FR-D700 SERIES |
| Product Type | Compact Inverter |
| Current Type | AC |
| Phases | 3 |
| Rated Input Voltage Range | 200 - 240 V AC |
| Permissible Voltage Range | 170 - 264 V AC |
| Rated Motor Capacity ND | 15 kW |
| Rated Output Current ND | 58 A |
| Motor Compatibility | Induction Motor |
| Control Method | Magnetic Flux Vector / Soft-PWM / V/F Control |
| Safe Torque Off (STO) | Yes |
| Brake Chopper ED | 30% |
| Digital Inputs / Outputs | 5 Inputs / 2 Outputs (1 Transistor, 1 Relay) |
| Analogue Inputs / Outputs | 2 Inputs / 1 Output |
| I/O Terminal Block Type | Spring Clamp |
| Built-In Network Protocol | Modbus-RTU |
| Interface Ports | 1x RS-485 |
| Display Type | Built-In 4 Digits LED |
| Standby Power Consumption | 13 - 22.5 W |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 220 x 260 x 190 mm |
| Weight | 6.5 kg |
| Conformity | CE, UL/cUL, EAC, UKCA |
