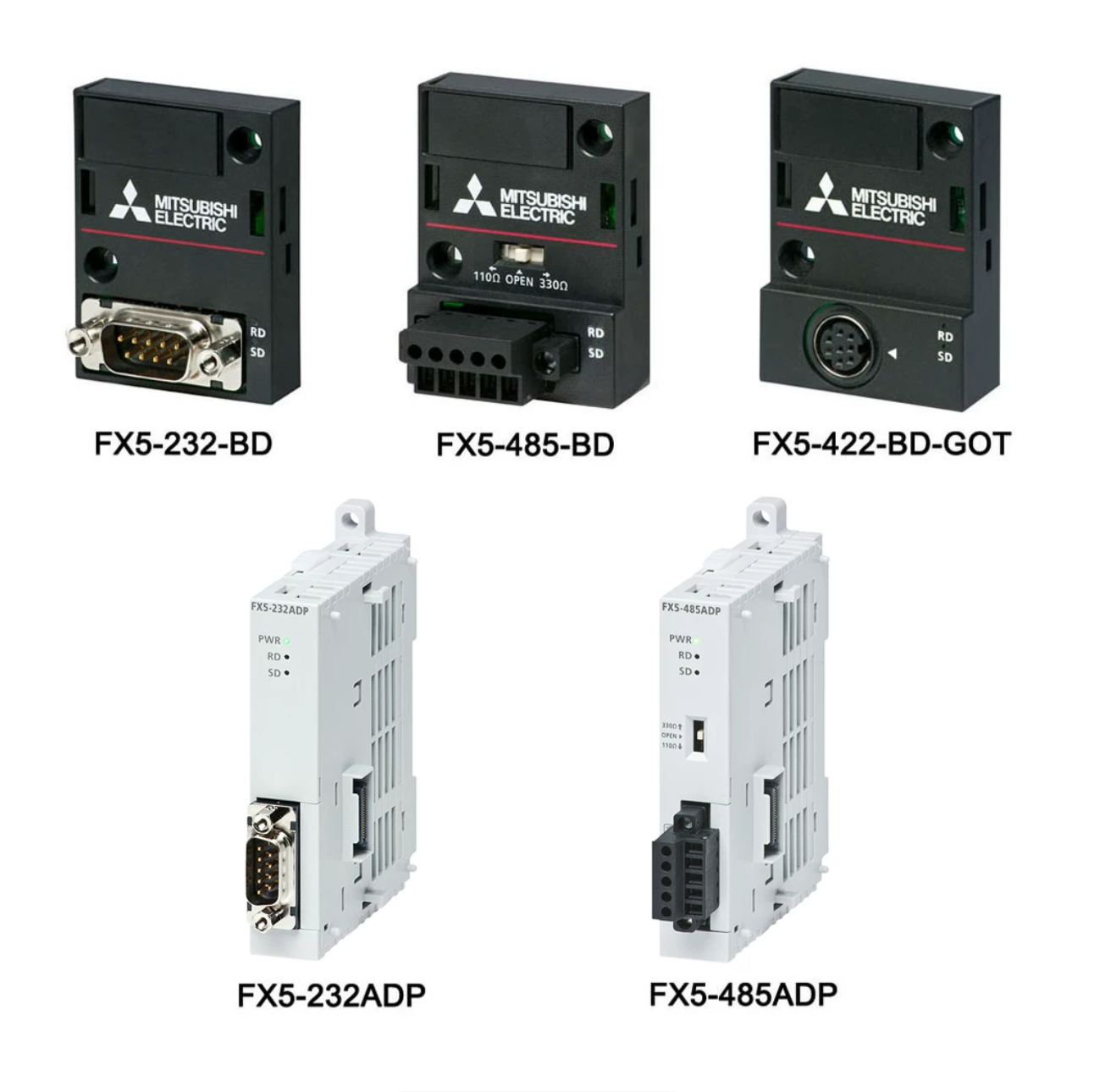

Mitsubishi Electric FX5-422-BD-GOT MELSEC iQ-F Series RS-422 Communication Expansion Board, 8-Pin Mini-DIN, GOT Connection
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi Electric FX5-422-BD-GOT is a high-performance RS-422 communication expansion board designed for the MELSEC iQ-F series PLCs, specifically supporting FX5S, FX5UJ, and FX5U CPU modules. This board provides a dedicated serial interface for connecting Graphic Operation Terminals (GOT) without occupying any additional PLC I/O points, streamlining HMI integration in industrial control panels. It supports scalable communication speeds up to 115.2 kbps through a standard 8-pin MINI-DIN female connector.
| Product ID (MPN) | FX5-422-BD-GOT |
| Applicable CPU Modules | FX5S, FX5UJ, FX5U (From first version) |
| Occupied I/O Points | 0 Points |
| Transmission Standard | RS-422 Conforming |
| Communication Method | Half-duplex, bidirectional communication |
| Communication Speed | 9600, 19200, 38400, 57600, 115200 bps |
| Connection Method | 8-pin MINI-DIN (Female) |
| Insulation | Not insulated (Between comm line and PLC) |
| Rated Voltage | 5 V DC (Internal supply) |
| Current Consumption | 20 mA / 5 V DC |
| Mass (Weight) | Approx. 20 g |
