Mitsubishi Electric GS2107-WTBD-N HMI, 7 in TFT Display, 24 V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

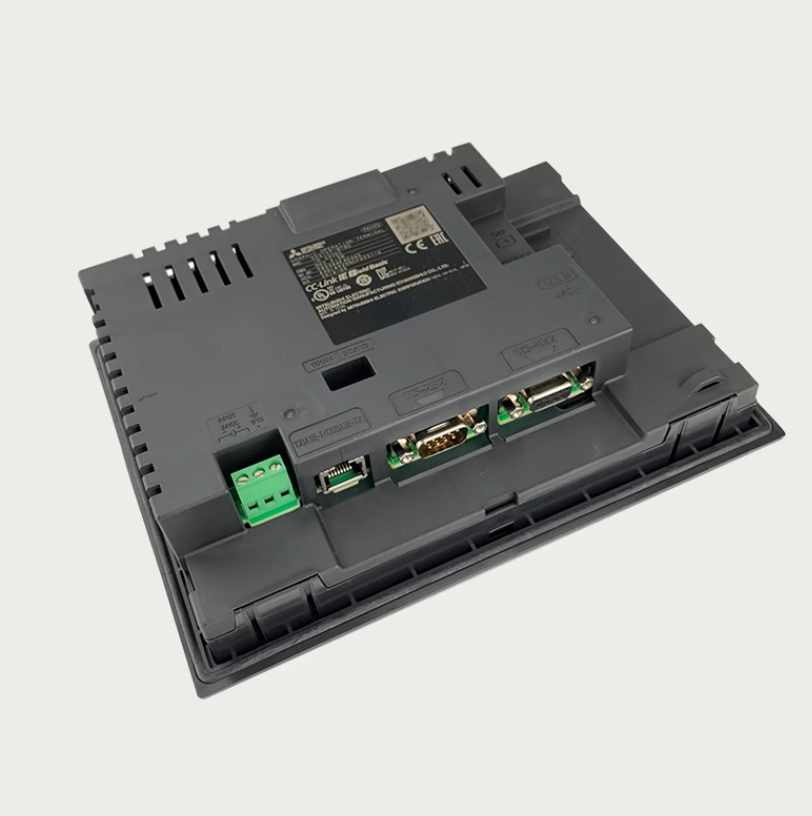

Mitsubishi Electric GS2107-WTBD-N is a GOT Simple Series GS21 model HMI with a 7 inch TFT display, 800 x 480 pixel resolution, 24 V DC power supply, and integrated industrial communication interfaces for automation and machine control systems.
| Brand | Mitsubishi Electric |
| MPN | GS2107-WTBD-N |
| Series | GOT Simple Series |
| Type | GS21 Model |
| Display | TFT, 65536 colours |
| Display Size | 7 inch |
| Resolution | 800 x 480 pixels |
| Power Supply | 24 V DC |
| Protection Class | IP65F |
| Internal Memory | 15 MB |
| Memory Card Slot | SD |
| Interfaces | USB x 1, Ethernet x 1, RS-232 x 1, RS-422/485 x 1 |
| Network Options | MODBUS, CCLINK, ETHERNET |
| Conformity | CE compliant, UL/cUL compliant, UKCA compliant |
| Dimensions | 206 x 155 x 50 mm |
| Weight | 0.71 kg |
The GS2107-WTBD-N HMI is typically used in industrial automation panels, machine operator stations, control systems, and maintenance replacement projects requiring a compact 7 inch display with serial, Ethernet, USB, and SD card support.
Apexon Supply supports B2B sourcing, procurement review, and replacement sourcing for Mitsubishi Electric HMI products using verified specifications and technical alignment support.
Send the MPN, required quantity, and application requirements to request a B2B quote for this industrial control component.
