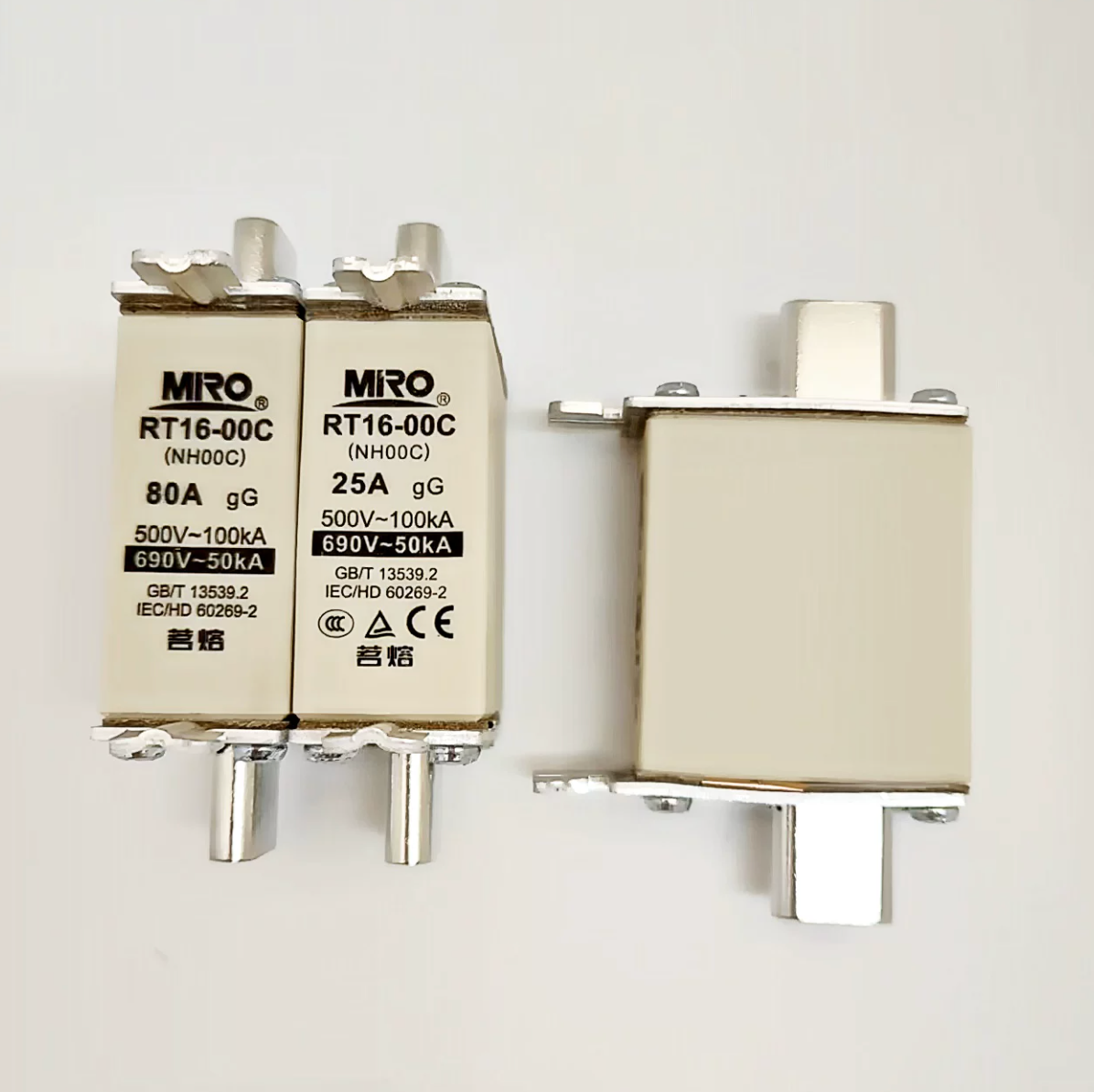

MIRO NH00C 100A / RO30C / NT00C / RT16-00C NH00 Low Voltage Fuse Link, 100A, 500V/660V gL
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The MIRO NH00C 100A is a robust low voltage NH fuse link built for full‑range general protection (gL/gG) in 500V/660V power distribution systems. With a rated current of 100 A and a compact size‑000 format, it is well suited for feeder and high‑power motor circuit applications. Certified to IEC 60269‑2‑1, this fuse offers high breaking capacity and superior current‑limiting performance for demanding industrial environments.
| Product ID (MPN) | NH00C 100A |
| Order Code / Ref No | RO30C / NT00C / RT16-00C |
| Rated Voltage | 500 V AC / 660 V AC |
| Rated Current | 100 A |
| Fuse Characteristic | gL/gG (full‑range general protection) |
| Rated Breaking Capacity | 120 kA (500 V) / 50 kA (660 V) |
| Power Dissipation (at 100 A) | 7.5 W |
| Rated Frequency | 45 – 62 Hz |
| Size Code | 000 (NH00) |
| Overall Dimensions (L × W × H) | 78.5 mm × 35 mm × 49.5 mm (approx.) |
| Weight | 150 g |
| Blade Material | Silver‑plated copper |
| Body Material | High‑strength ceramic |
| Applicable Standards | IEC 60269‑2‑1, VDE 0636‑2 |
