MIRO NH00C 40A / RO30C / NT00C / RT16-00C NH00 Low Voltage Fuse Link, 40A, 500V/660V gL
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

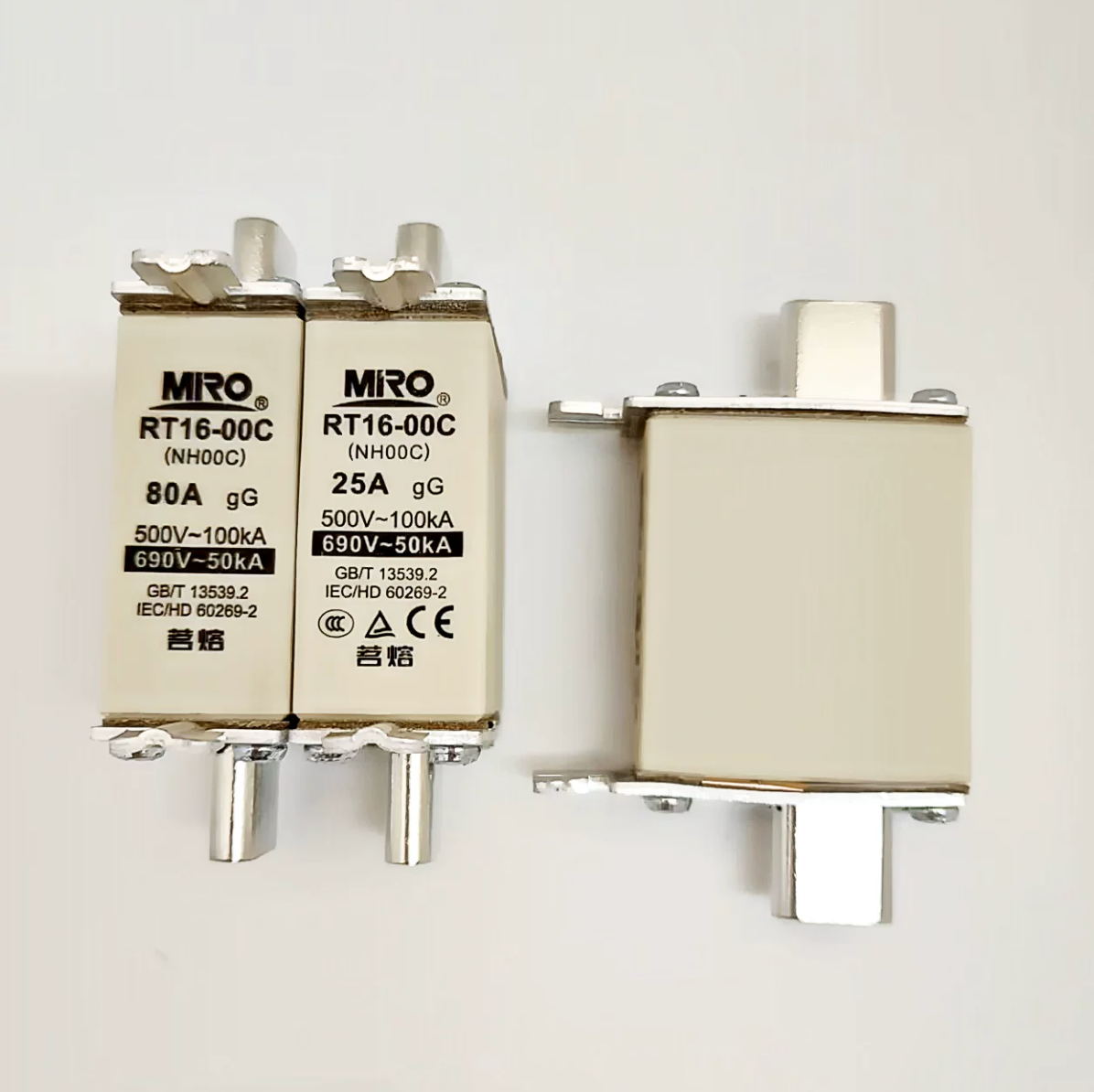

The MIRO NH00C 40A is a compact low voltage NH fuse link designed for full‑range general protection (gL/gG) in 500V/660V industrial distribution systems. Rated at 40 A, this size‑000 link provides reliable overload and short‑circuit protection for feeders and motor circuits. Certified to IEC 60269‑2‑1, it delivers excellent current‑limiting performance and high breaking capacity.
| Product ID (MPN) | NH00C 40A |
| Order Code / Ref No | RO30C / NT00C / RT16-00C |
| Rated Voltage | 500 V AC / 660 V AC |
| Rated Current | 40 A |
| Fuse Characteristic | gL/gG (full‑range general protection) |
| Rated Breaking Capacity | 120 kA (500 V) / 50 kA (660 V) |
| Power Dissipation (at 40 A) | 2.5 W |
| Rated Frequency | 45 – 62 Hz |
| Size Code | 000 (NH00) |

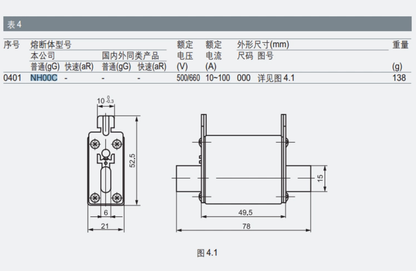

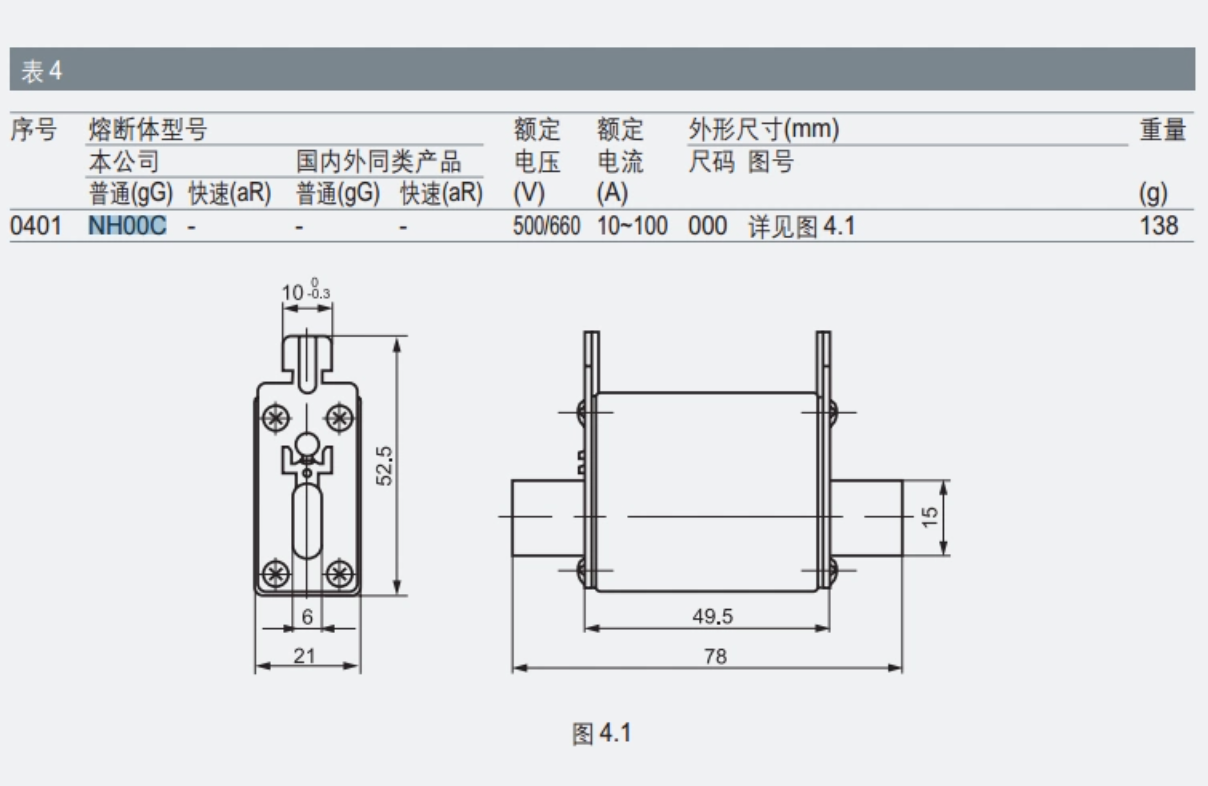

| Overall Dimensions (L × W × H) | 78.5 mm × 35 mm × 49.5 mm (approx.) |
| Weight | 130 g |
| Blade Material | Silver‑plated copper |
| Body Material | High‑strength ceramic |
| Applicable Standards | IEC 60269‑2‑1, VDE 0636‑2 |
