MIRO NH00C 80A / RO30C / NT00C / RT16-00C NH00 Low Voltage Fuse Link, 80A, 500V/660V gL
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

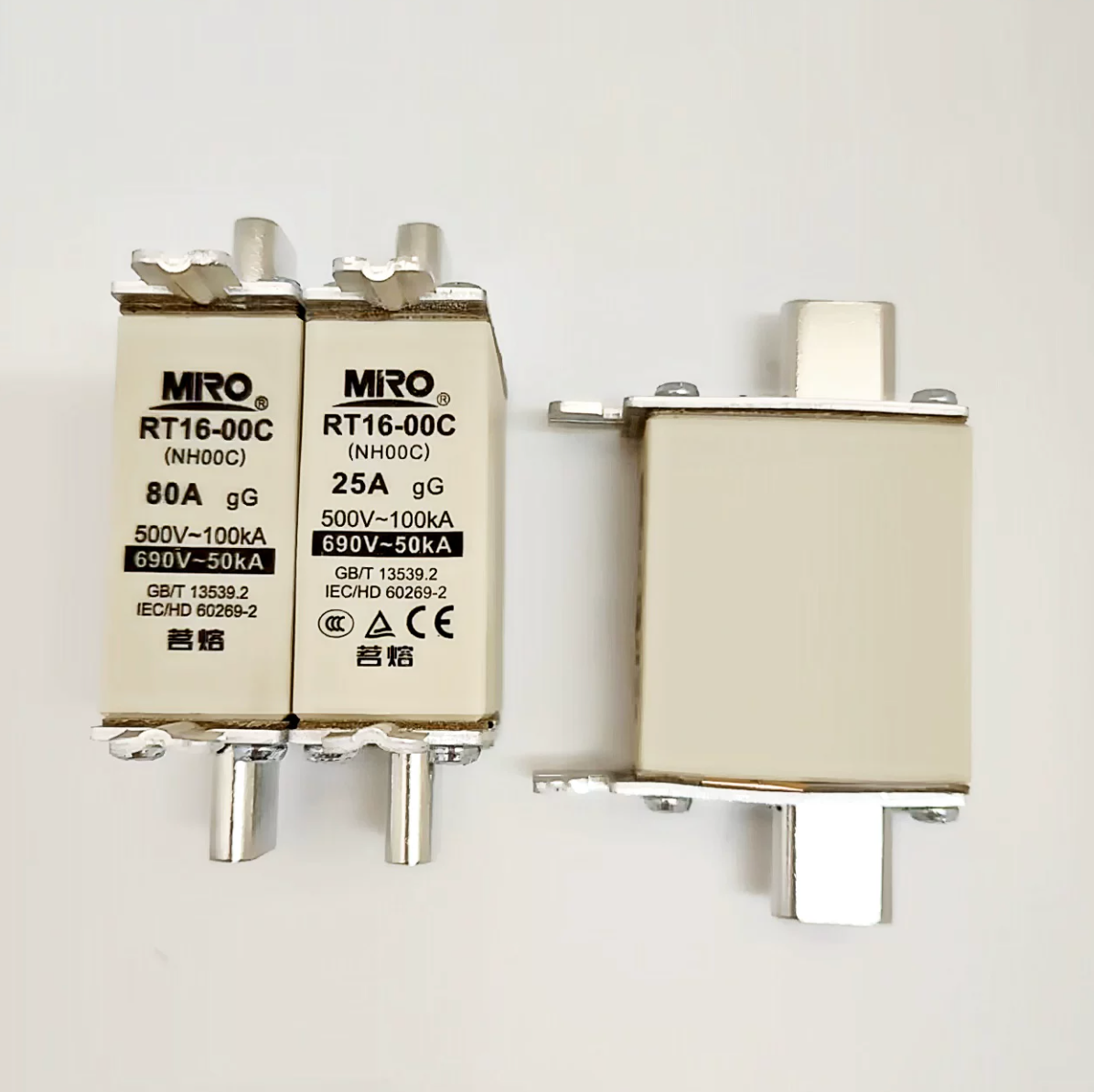

The MIRO NH00C 80A is a compact low voltage NH fuse link developed for full‑range general protection (gL/gG) in 500V/660V industrial power distribution. At 80 A rated current, it provides reliable overload and short‑circuit protection for feeders, motors, and other critical loads within its size‑000 form factor. Certified to IEC 60269‑2‑1, this fuse delivers high breaking capacity and excellent current limitation for demanding applications.
| Product ID (MPN) | NH00C 80A |
| Order Code / Ref No | RO30C / NT00C / RT16-00C |
| Rated Voltage | 500 V AC / 660 V AC |
| Rated Current | 80 A |
| Fuse Characteristic | gL/gG (full‑range general protection) |
| Rated Breaking Capacity | 120 kA (500 V) / 50 kA (660 V) |
| Power Dissipation (at 80 A) | 5.5 W |
| Rated Frequency | 45 – 62 Hz |
| Size Code | 000 (NH00) |

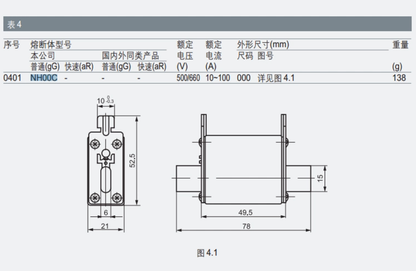

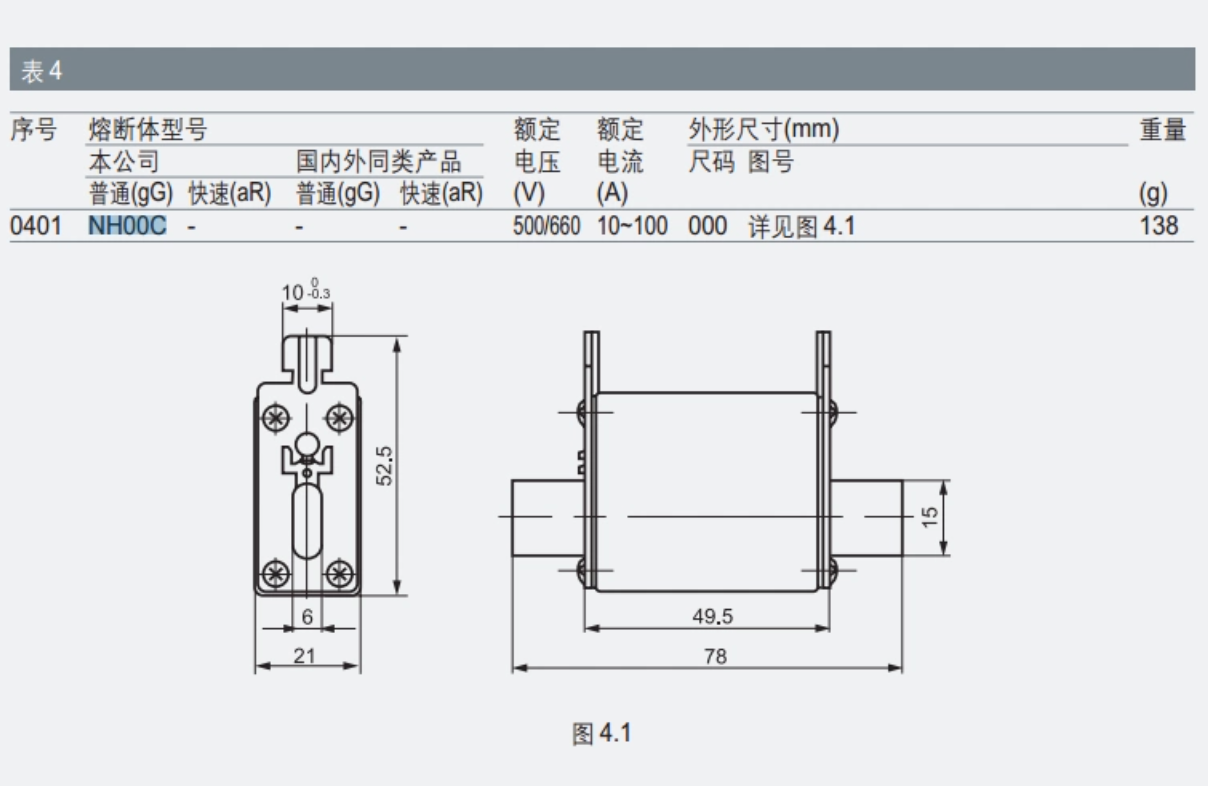

| Overall Dimensions (L × W × H) | 78.5 mm × 35 mm × 49.5 mm (approx.) |
| Weight | 140 g |
| Blade Material | Silver‑plated copper |
| Body Material | High‑strength ceramic |
| Applicable Standards | IEC 60269‑2‑1, VDE 0636‑2 |
