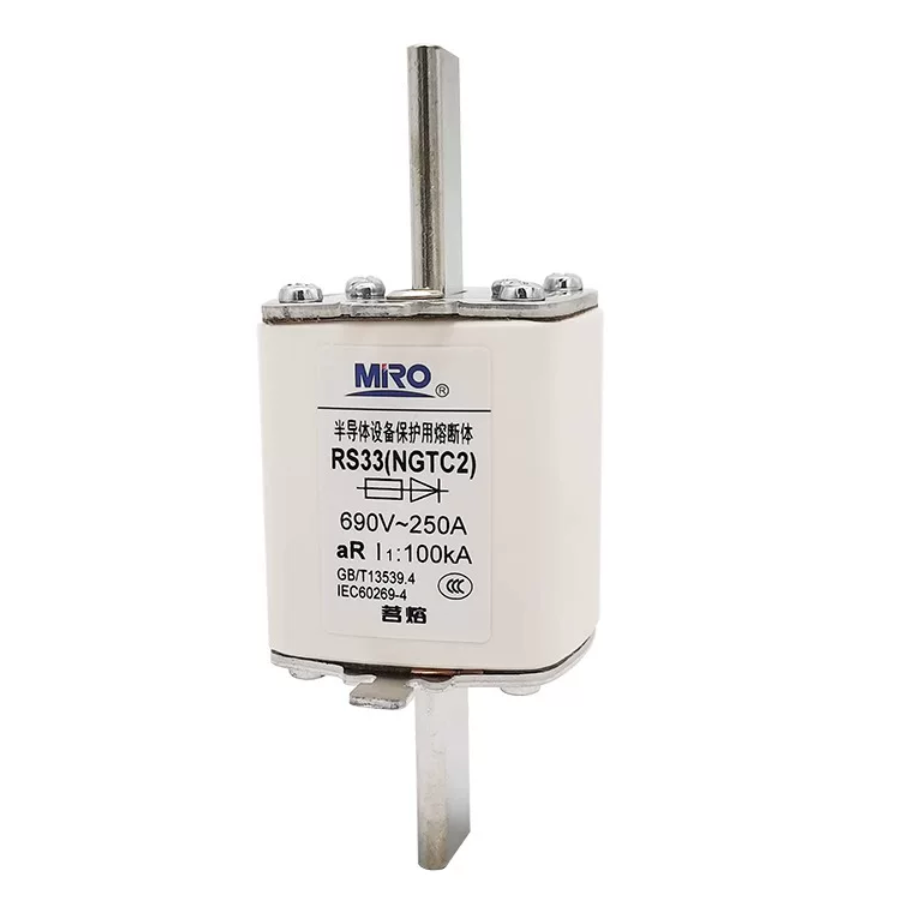

MIRO RS33 250A / NGTC2 RS33 Series High-Speed Semiconductor Fuse, 690V, Size 2
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The MIRO RS33 (NGTC2) is a precision-engineered high-speed semiconductor fuse designed for superior overcurrent protection in power electronic systems. Featuring an aR operating class and reaching a 250A rating at 690V, this Size 2 square body fuse provides exceptionally fast response times to protect sensitive components such as thyristors, diodes, and IGBTs in industrial rectifiers and frequency converters.
| Product ID (MPN) | RS33 250A |
| Order Code | NGTC2 |
| Product Type | Fast Acting Semiconductor Fuse |
| Operating Class | aR (High Speed) |
| Rated Voltage | 500V / 690V AC |
| Rated Current | 250 A |
| Fuse Size Code | Size 2 (NH2 Equivalent) |
| Total Length (A) | 150 mm |
| Body Length (B) | 68 mm |
| Blade Width (C) | 30 mm |
| Body Width (D) | 58 mm |
| Body Height (H) | 68 mm |
| Net Weight | 727 g |
