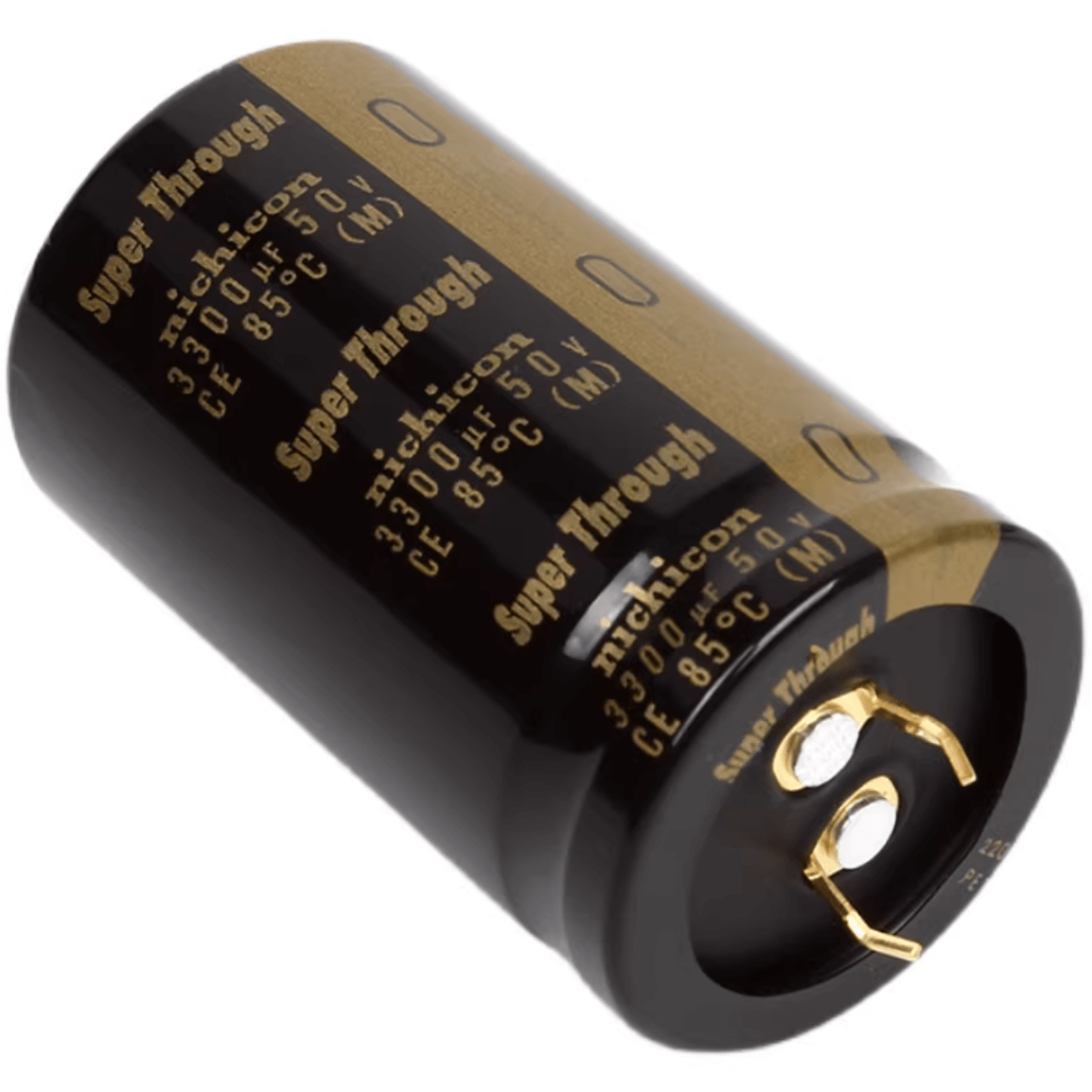

Nichicon LKG1H332MESBCK Aluminum Electrolytic Capacitor, 3300 µF, 50V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Nichicon LKG1H332MESBCK is an LKG Gold Tune Type II aluminum electrolytic capacitor specified at 3300 µF with a 50V DC voltage rating. This snap-in capacitor is designed for high-fidelity audio applications and supports procurement review, replacement sourcing, and technical comparison for amplifier and audio-visual equipment power supply filtering.
| Manufacturer | Nichicon |
| Manufacturer Product Number | LKG1H332MESBCK |
| Series | LKG Gold Tune Type II |
| Capacitor Type | Aluminum Electrolytic Capacitor |
| Capacitance | 3300 µF |
| Voltage Rating | 50V DC |
| Tolerance | ±20% at 120Hz, +20°C |
| Operating Temperature Range | -40°C to +85°C |
| Ripple Current | 3300 mA at 120Hz, +85°C |
| Leakage Current | 1210 µA after 2 minutes |
| Dissipation Factor | tanδ 0.22 |
| Body Dimensions | 30 mm Diameter x 50 mm Length |
| Termination Style | Snap-In, 2-Pin |
| Life Expectancy | 1000 Hours at 85°C |
Typical applications include power supply filter use in high-quality amplifiers and audio-visual equipment where capacitance, voltage rating, ripple current, termination style, and body size must be checked against the original equipment requirements.
Apexon Supply supports B2B sourcing and replacement review for Nichicon LKG1H332MESBCK, helping buyers compare verified specifications and confirm technical alignment before procurement.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
