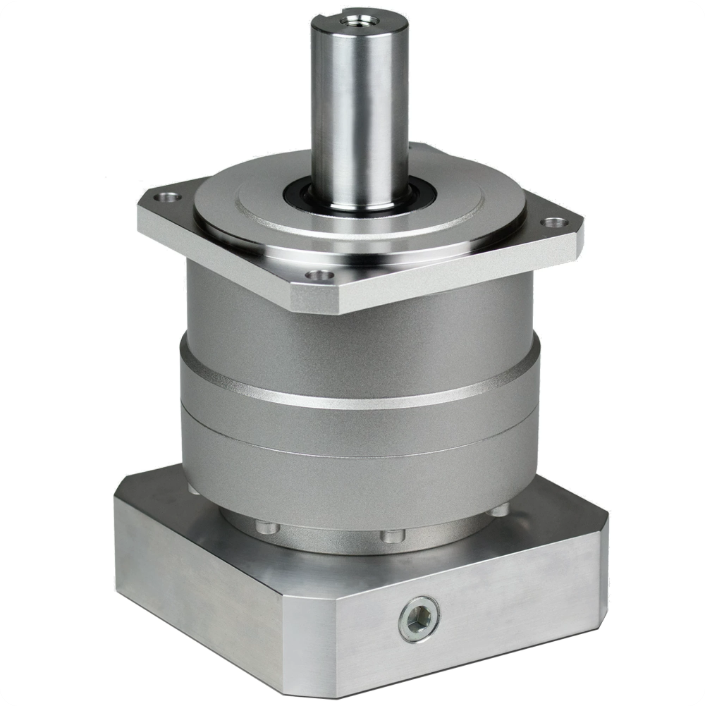

Nidec VRB-042C-10-K3-S8ZG8 VRB Series Planetary Inline Gear Reducer, Ratio 10:1, 10 Nm, Keyed Shaft
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Nidec VRB-042C-10-K3-S8ZG8 is a high-performance planetary inline gear reducer designed for precision servo motor applications. Featuring a 10:1 reduction ratio, keyed shaft output, and a low backlash of ≤3 arc-min, it delivers reliable torque transmission and exceptional positioning accuracy for industrial automation systems.
| Product ID (MPN) | VRB-042C-10-K3-S8ZG8 |
| Manufacturer | Nidec-Shimpo |
| Series | VRB Series |
| Frame Size | 042 |
| Reduction Ratio | 10:1 (1-Stage) |
| Output Mounting Style | Keyed Shaft |
| Nominal Output Torque | 10 Nm |
| Maximum Acceleration Torque | 14 Nm |
| Emergency Stop Torque | 30 Nm |
| Nominal Input Speed | 4000 rpm |
| Maximum Input Speed | 8000 rpm |
| Maximum Radial Load | 710 N |
| Maximum Axial Load | 640 N |
| Maximum Torsional Backlash | ≤ 3 arc-min |
| Torsional Rigidity | 2 Nm/arc-min |
| Efficiency | 95% |
| Noise Level | ≤ 61 dB (A) |
| Protection Class | IP54 (IP65 optional) |
| Weight | 0.6 kg |
