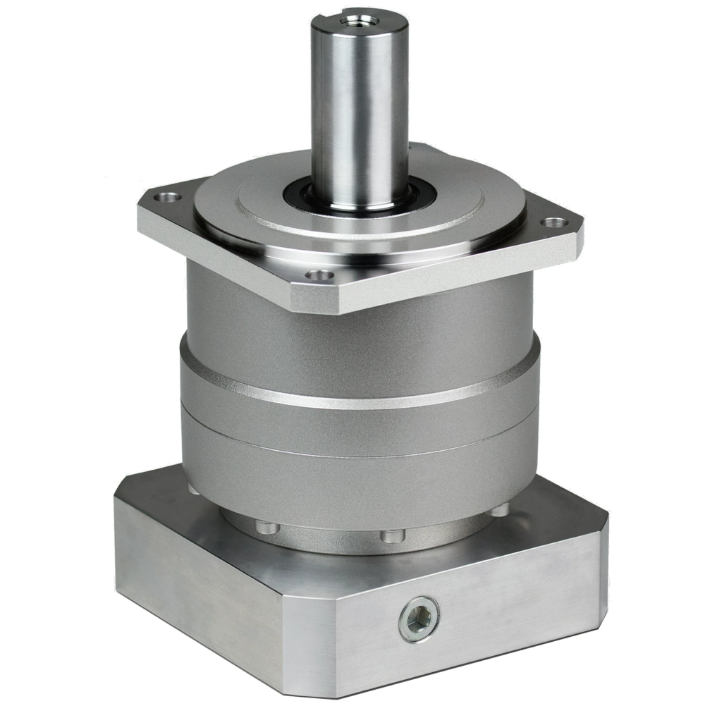

Nidec VRB-090C-5-K3-28HB19A VRB Series Planetary Inline Gear Reducer, Ratio 5:1, 84 Nm, Keyed Shaft
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Nidec VRB-090C-5-K3-28HB19A is a high-performance planetary inline gear reducer designed for precision servo motor applications. Featuring a 5:1 reduction ratio, keyed shaft output, and a low backlash of ≤3 arc-min, it delivers reliable torque transmission and exceptional positioning accuracy for industrial automation systems.
| Product ID (MPN) | VRB-090C-5-K3-28HB19A |
| Manufacturer | Nidec-Shimpo |
| Series | VRB Series |
| Frame Size | 090 |
| Reduction Ratio | 5:1 (1-Stage) |
| Output Mounting Style | Keyed Shaft |
| Nominal Output Torque | 84 Nm |
| Maximum Acceleration Torque | 165 Nm |
| Emergency Stop Torque | 250 Nm |
| Nominal Input Speed | 2900 rpm |
| Maximum Input Speed | 7500 rpm |
| Maximum Radial Load | 2400 N |
| Maximum Axial Load | 2200 N |
| Maximum Torsional Backlash | ≤ 3 arc-min |
| Torsional Rigidity | 10 Nm/arc-min |
| Efficiency | 95% |
| Noise Level | ≤ 67 dB (A) |
| Protection Class | IP54 (IP65 optional) |
| Weight | 3.7 kg |
