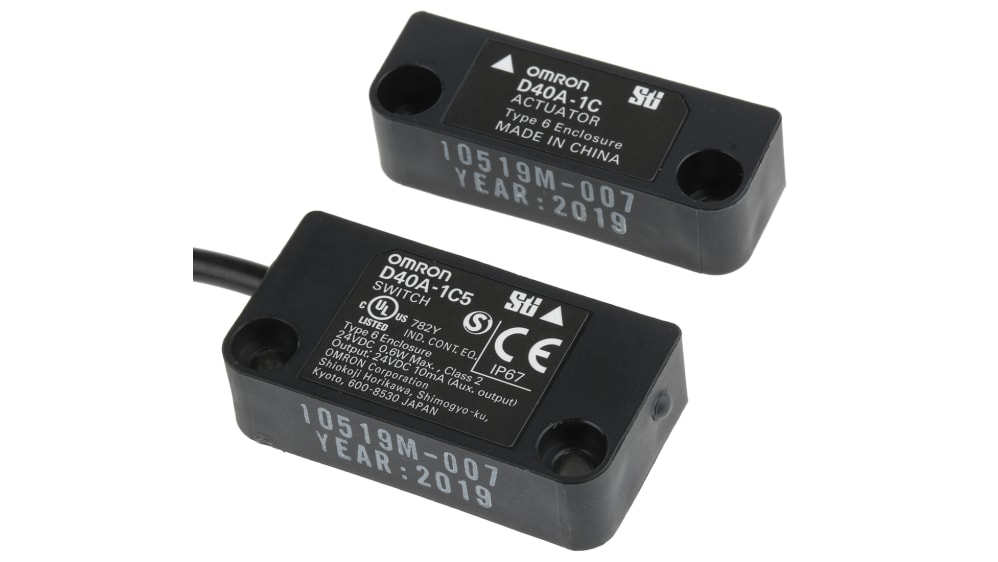

Omron D40A-1C5 D40A Series Non-Contact Magnetic Safety Interlock Switch, SPST-NO, 5m Cable, IP67
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron D40A-1C5 is a robust non-contact magnetic safety interlock switch designed for high-reliability machine guarding applications. Featuring a 5-meter integrated cable and an IP67-rated housing for dust-tight and waterproof performance, this SPST-NO switch ensures long-term durability in industrial environments through its wear-free electronic sensing technology and compact form factor.
| Product ID (MPN) | D40A-1C5 |
| Base Product Number | D40A-1 |
| Circuit Configuration | SPST-NO |
| Supply Voltage | 24 VDC |
| Current Rating | 10 mA (DC) |
| Switching Distance (Operate) | 5 mm (Must Operate) |
| Switching Distance (Release) | 15 mm (Must Release) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Termination Style | Cable Leads (5 m) |
| Operating Temperature | -10°C ~ 55°C |
| Approval Agency | CE, cULus, TUV |
