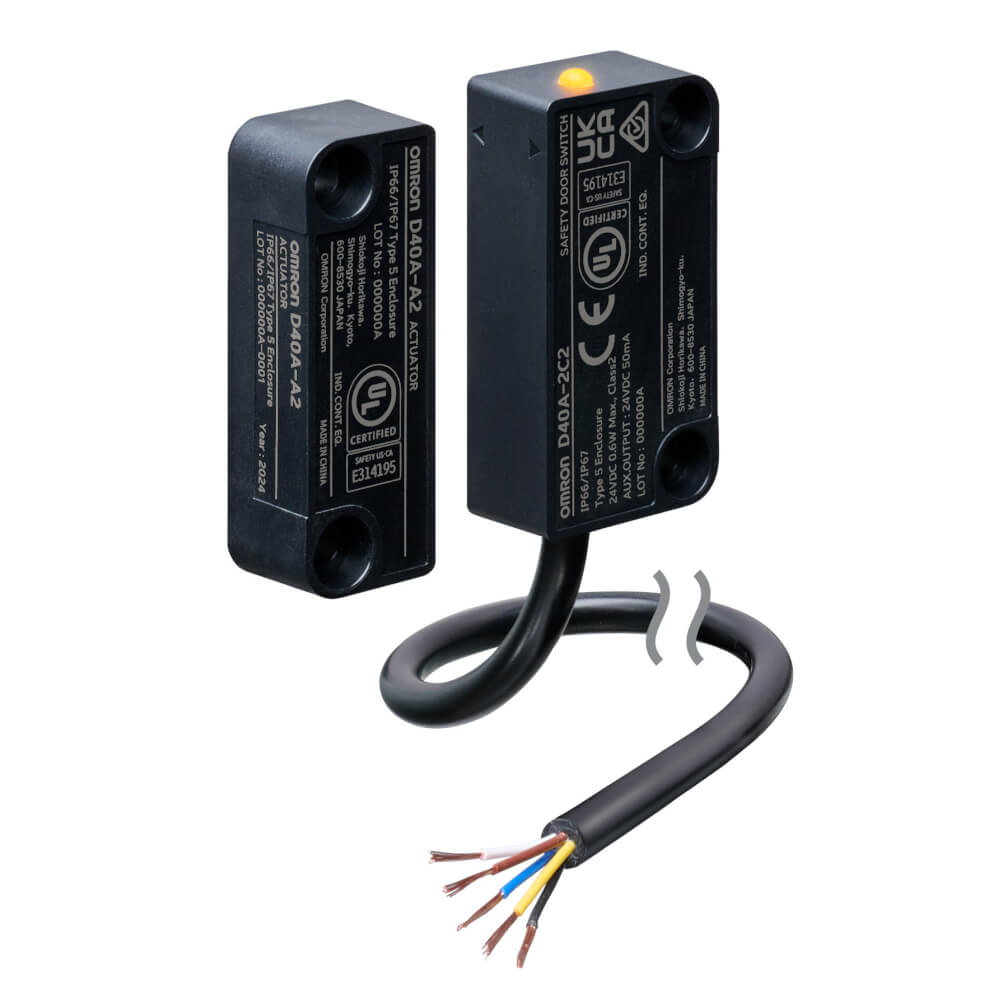

Omron D40A-2C2 D40A-2 Series RFID Non-contact Safety Door Switch Set, Dual PNP, 2m Cable, PLe/SIL3
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron D40A-2C2 is a high-security RFID-based non-contact safety door switch set designed for maximum tamper resistance and operator protection. Meeting the highest safety standards including PLe (EN ISO 13849-1) and SIL3 (IEC/EN 61508), this epoxy-sealed PBT unit features dual PNP OSSD safety outputs and an auxiliary output, ensuring reliable guard monitoring in high-vibration and washdown industrial environments.
| Product ID (MPN) | D40A-2C2 |
| Safety Integrity Level | PLe (Cat.4) / SIL3 / PDDB (IEC/EN 60947-5-3) |
| Operating Voltage | 24 VDC (+10% / -15%) |
| Output Type | Dual PNP (OSSD) and 1 Auxiliary PNP |
| Switching Distance | ON: 5 mm min / OFF: 15 mm max |
| Coding Level | Low level coded (EN ISO 14119) |
| Rated Current | 50 mA (Safety) / 50 mA (Aux) |
| Connection | 8-core cable with exposed leads, 2 m |
| Housing Material | Epoxy-sealed PBT housing |
| Device Size | 13 x 48 x 25 mm |
