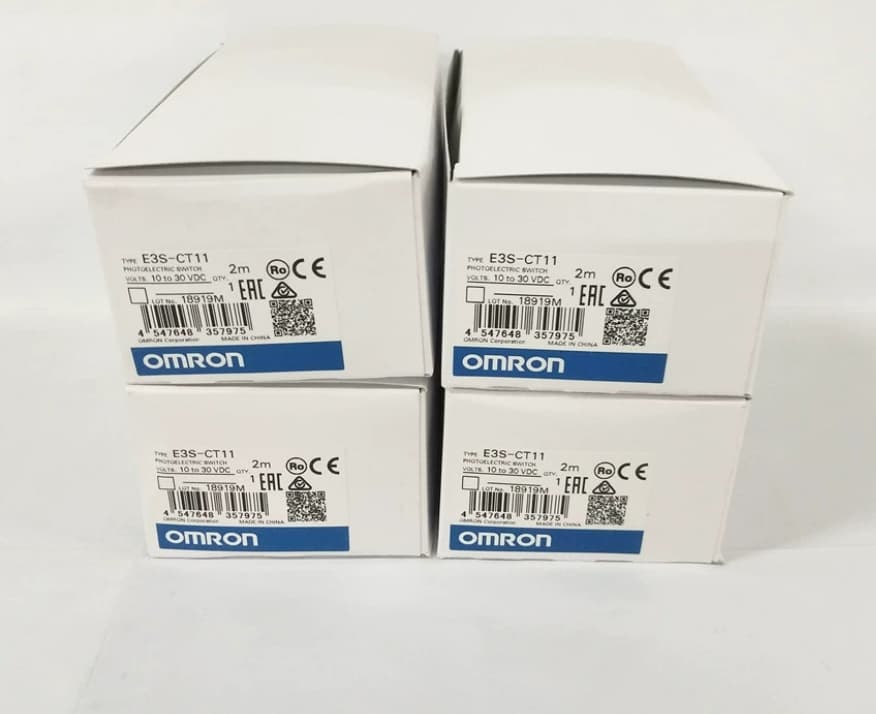

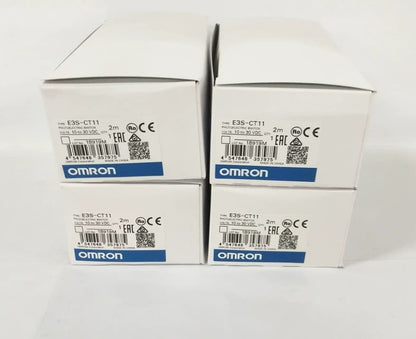

OMRON E3S-CT11 Through-beam Photoelectric Sensor, 30 m, 10-30 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

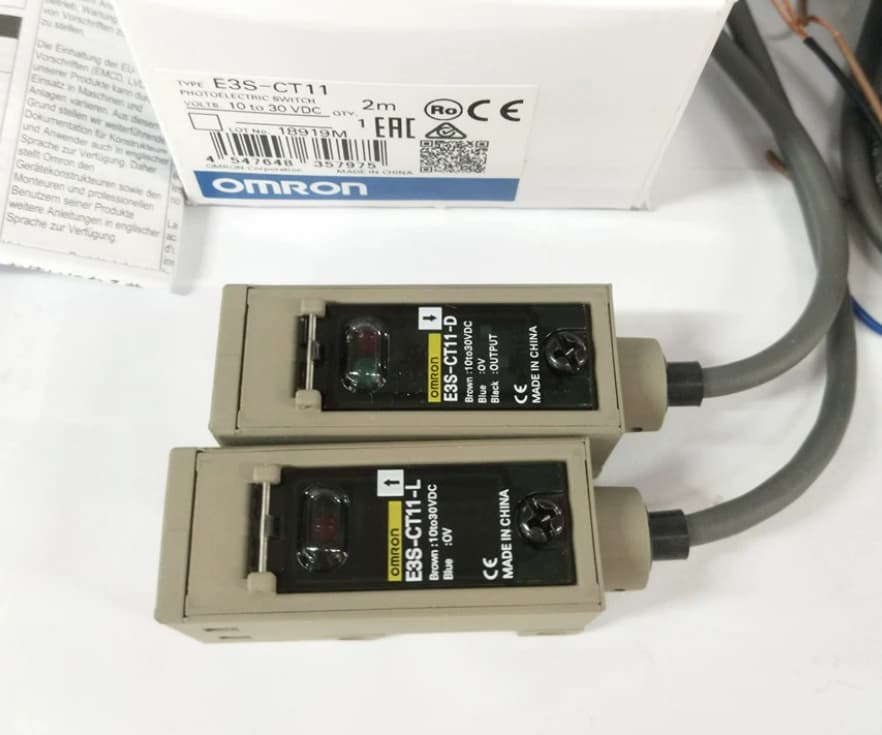

OMRON E3S-CT11 is a horizontal through-beam photoelectric sensor set with an Emitter and Receiver, rated for a 30 m sensing distance. It uses an 850 nm infrared LED and features a pre-wired connection with a standard 2 m cable.
| Model | E3S-CT11 |
| Sensing Method | Through-beam |
| Sensing Distance | 30 m |
| Standard Sensing Object | Opaque, 15-mm dia. min. |
| Light Source | Infrared LED, 850 nm |
| Power Supply Voltage | 10 to 30 VDC including 10% (p-p) ripple |
| Current Consumption | 50 mA max. (Emitter 25 mA max.; Receiver 25 mA max.) |
| Control Output | NPN/PNP selectable, 100 mA max., 30 VDC max. |
| Response Time | Operate or reset: 1 ms max. |
| Degree of Protection | IEC 60529: IP67; NEMA 6P indoors only |
| Connection Method | Pre-wired, standard cable length 2 m |
The E3S-C series is designed for water- and oil-resistant sensing and is described for use in locations with oil mist.
Apexon Supply provides B2B sourcing, replacement sourcing, and technical alignment support for OMRON E3S-CT11 photoelectric sensors used in industrial maintenance and automation procurement.
Submit OMRON E3S-CT11, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
