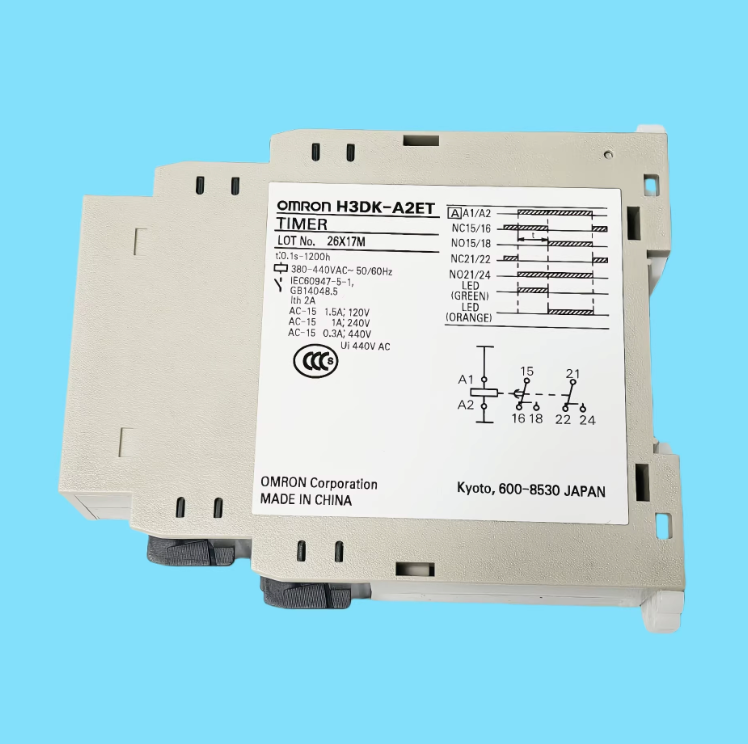

Omron H3DK-A2ET H3DK Series Single-mode ON-delay Timer, 380-440 VAC, 0.1s to 1200h
Regular price
$240.00 USD
Regular price
Sale price
$240.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-A2ET is a high-performance, single-mode ON-delay industrial timer designed for precise timing control in high-voltage power systems. Featuring a wide supply range of 380 to 440 VAC and an extensive time setting scale from 0.1 seconds up to 1,200 hours, this DIN-rail mount unit is engineered for reliable operation in complex automation control panels and motor management systems.
| Product ID (MPN) | H3DK-A2ET |
| Power Supply Voltage | 380 to 440 VAC, 50/60 Hz |
| Operating Mode | ON Delay |
| Control Output | Time-limit SPDT + Instantaneous SPDT |
| Time Range Setting | 0.1 s to 1,200 h (8 selectable ranges) |
| Rated Load Current | 1.5 A at 120 VAC / 1 A at 220 VAC / 0.3 A at 440 VAC (AC-15) |
| Reset Time | 100 ms minimum |
| Accuracy of Operating Time | ±1% of FS maximum |
| Mounting Method | DIN Track mounting |
| Degree of Protection | IP30 (Terminal block: IP00) |
| Terminal Block | 8 terminals |
