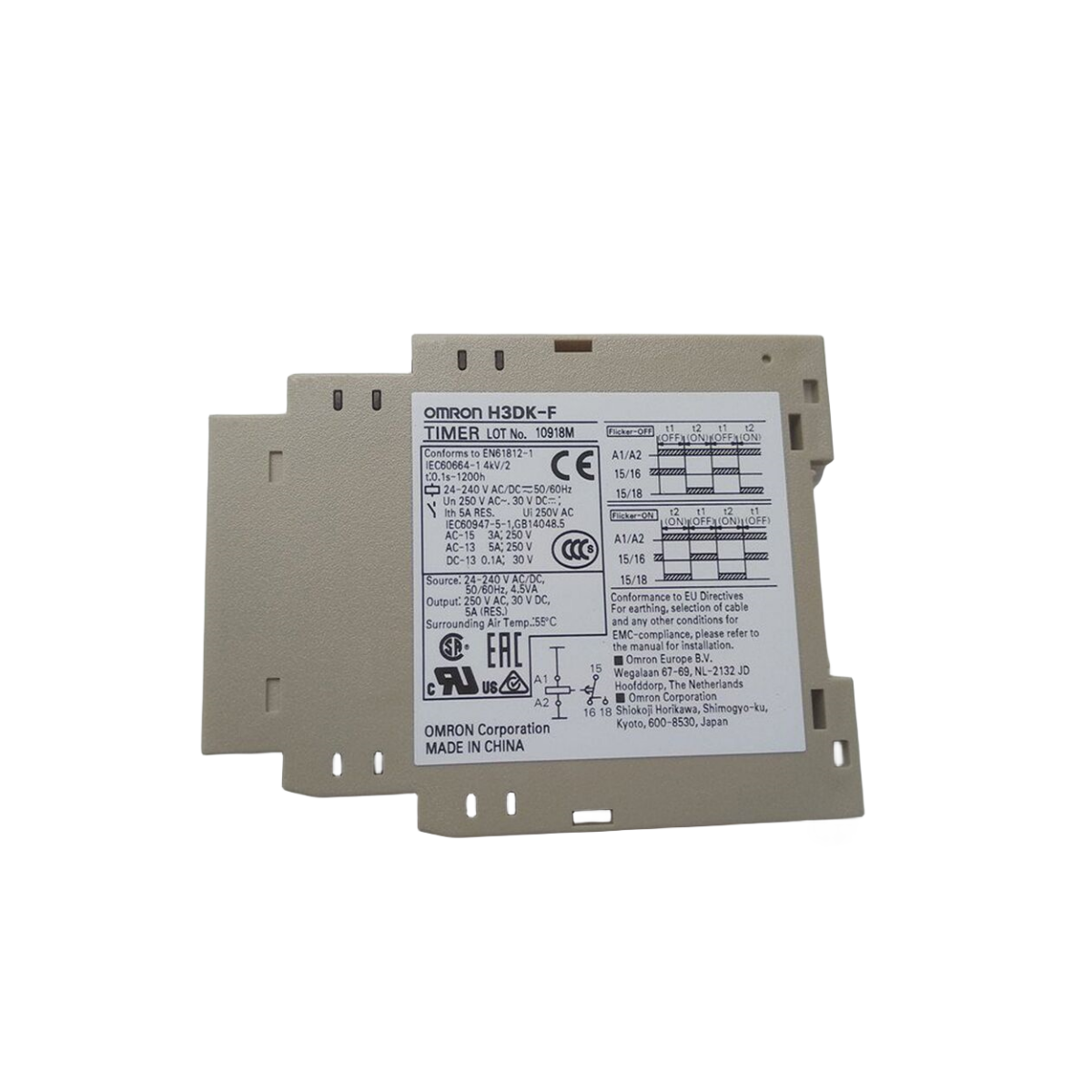

Omron H3DK-F H3DK Series Twin Timer, 24-240 VAC/DC / 12 VDC, 0.1s to 1200h
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-F is a high-precision, 22.5mm-wide DIN rail mount twin timer designed for industrial automation flicking/cycling applications. This versatile unit supports a broad universal supply range of 24 to 240 VAC/DC, providing engineers with a reliable solution for repeated ON/OFF switching control in chemical processing, water treatment, and conveyor systems.
| Product ID (MPN) | H3DK-F |
| Power Supply Voltage | 24 to 240 VAC/DC (50/60 Hz) / 12 VDC |
| Control Output | Relay output (SPDT): 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Time Range Setting | 0.1 s to 1,200 h (8 selectable ranges) |
| Power Reset | Minimum power-OFF time: 0.1 s |
| Influence of Temperature | ±2% of FS maximum |
| Contact Materials | Ag-alloy + Gold plating |
| Impulse Withstand Voltage | 5 kV (24-240 VAC/DC) |
| Dielectric Strength | 2,000 VAC 50/60 Hz for 1 min (between charging and non-charging parts) |
| Degree of Protection | IP30 (Terminal block: IP20) |
| Mechanical Life | 10 million operations minimum |
