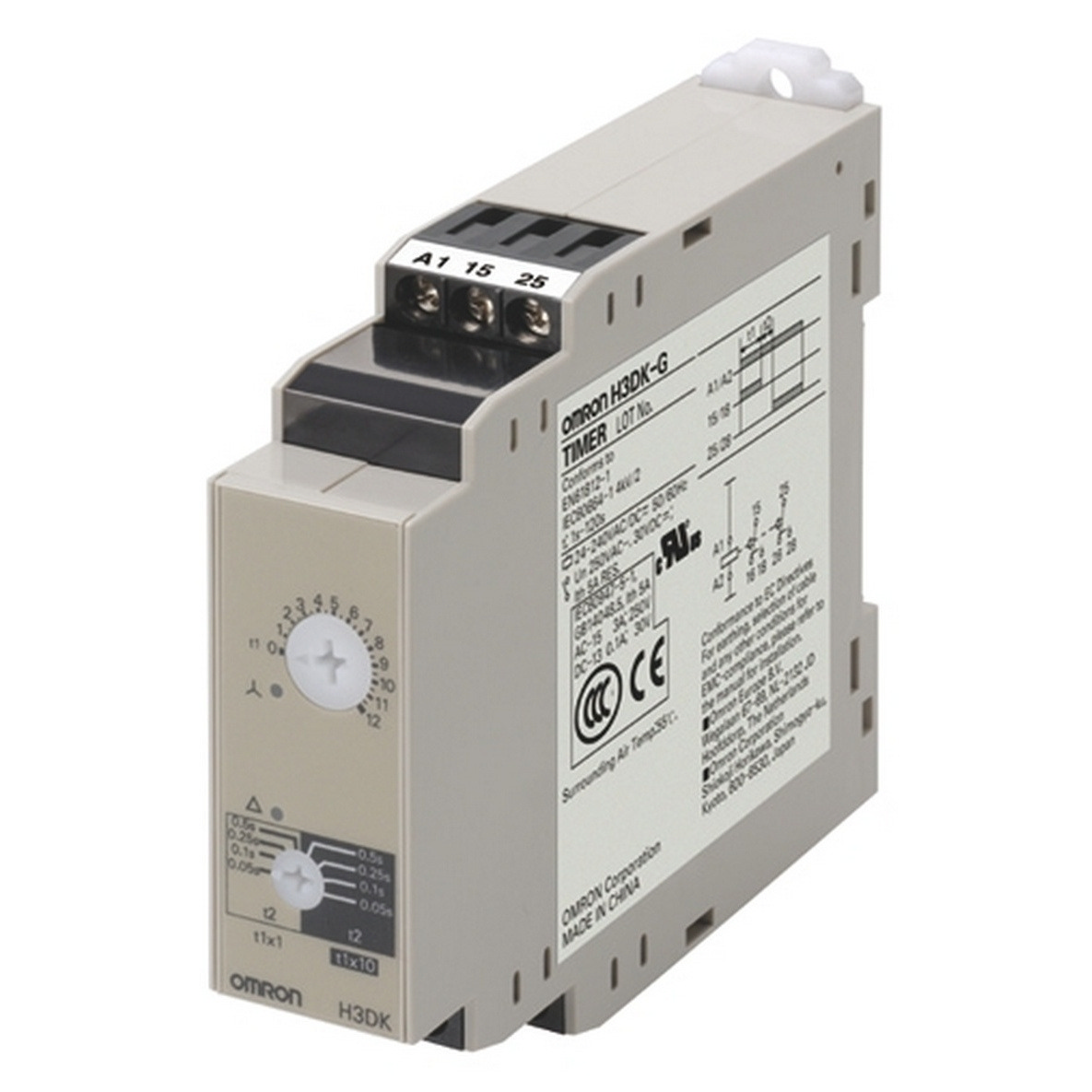

Omron H3DK-G AC/DC24-240 H3DK Series Star-delta Timer, 24-240 VAC/VDC, 1 to 120 s
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-G AC/DC24-240 is a specialized solid-state star-delta timer engineered for reduced-voltage motor starting applications. Featuring a universal voltage input of 24 to 240 VAC/VDC, this precision component provides seamless transition control between star and delta configurations with adjustable transfer times, ensuring optimal motor protection and reduced mechanical stress during startup.
| Product ID (MPN) | H3DK-G AC/DC24-240 |
| Rated Power Supply Voltage | 24 to 240 VAC (50/60 Hz) / 24 to 240 VDC |
| Operation Mode | Star-delta |
| Control Output | SPDT (Start operation circuit) + SPDT (Delta operation circuit) |
| Time Settings | 1 to 120 s (Star operation time) |
| Star-delta Transfer Time | Selectable: 0.05 s, 0.1 s, 0.25 s, 0.5 s |
| Contact Rating | 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Accuracy of Operating Time | ±1% FS max. |
| Degree of Protection | IP30 (Terminal Block: IP20) |
| Connecting Method | Terminal blocks |
| Impulse Withstand Voltage | 5 kV |
