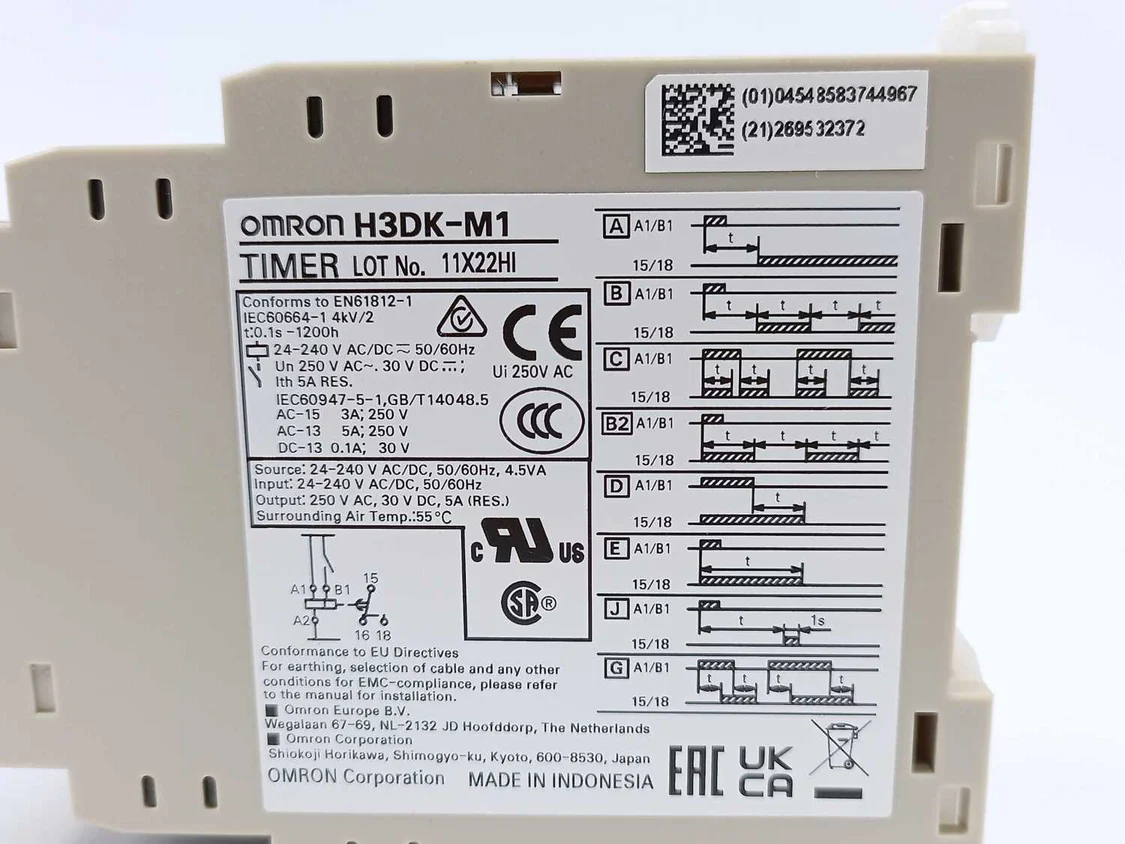

Omron H3DK-M1 AC/DC24-240 H3DK Series Multi-mode Timer, SPDT, 24-240 VAC/VDC, 0.1 s to 1200 h
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-M1 AC/DC24-240 is a versatile 22.5mm wide solid-state industrial timer featuring eight selectable multi-modes for comprehensive automation control. Engineered with a universal 24 to 240 VAC/VDC power supply and an SPDT relay output, this high-precision component serves as a robust solution for diverse timing requirements including ON-delay, Flicker, and Interval operations in enterprise-level electrical panels.
| Product ID (MPN) | H3DK-M1 AC/DC24-240 |
| Rated Power Supply Voltage | 24 to 240 VAC (50/60 Hz) / 24 to 240 VDC |
| Operation Mode | 8 Modes (ON-delay, Flicker OFF/ON start, Signal ON/OFF delay, Interval, One shot) |
| Control Output | SPDT Relay (Time-limit) |
| Time Range Setting | 0.1 s to 1,200 h (8 selectable ranges) |
| Contact Rating | 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Input Signals | Start (Voltage input: High 20.4V to 264V) |
| Degree of Protection | IP30 (Terminal Block: IP20) |
| Impulse Withstand Voltage | 5 kV |
| Mounting Method | DIN Track mounting |
