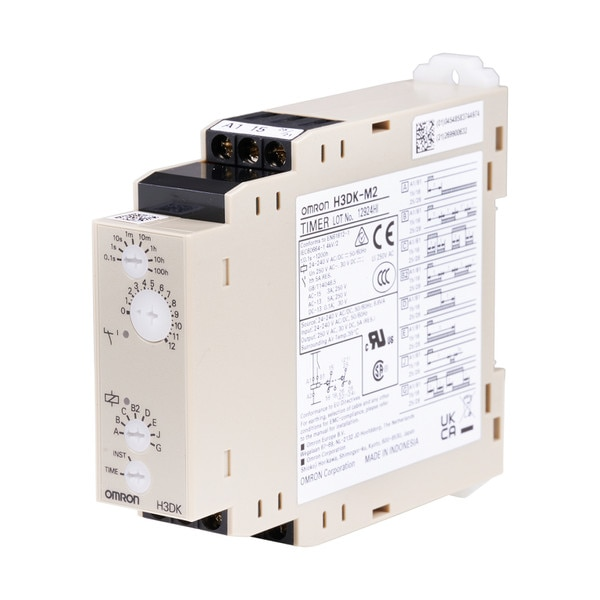

Omron H3DK-M2 AC/DC24-240 H3DK Series Multi-mode Timer, DPDT, 24-240 VAC/VDC, 0.1 s to 1200 h
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-M2 AC/DC24-240 is a high-versatility multi-range industrial timer featuring eight distinct operating modes to suit complex automation requirements. With a universal supply voltage of 24 to 240 VAC/VDC and a DPDT relay output that can be configured for time-limit or instantaneous operation, this 22.5mm DIN-rail mounted unit provides professional-grade timing precision for enterprise-level control panels.
| Product ID (MPN) | H3DK-M2 AC/DC24-240 |
| Rated Power Supply Voltage | 24 to 240 VAC (50/60 Hz) / 24 to 240 VDC |
| Operation Modes | ON delay, Flicker OFF start, Flicker ON start, Signal ON/OFF delay, Signal OFF delay, Interval, One shot |
| Control Output | DPDT (Time-limit SPDT and switchable Time-limit/Instantaneous SPDT) |
| Time Range Setting | 0.1 s to 1,200 h (8 ranges) |
| Contact Rating | 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Input Signals | Start (Voltage input: High 20.4 to 264 VAC/VDC) |
| Degree of Protection | IP30 (Terminal Block: IP20) |
| Impulse Withstand Voltage | 5 kV |
| Connecting Method | Terminal blocks |
