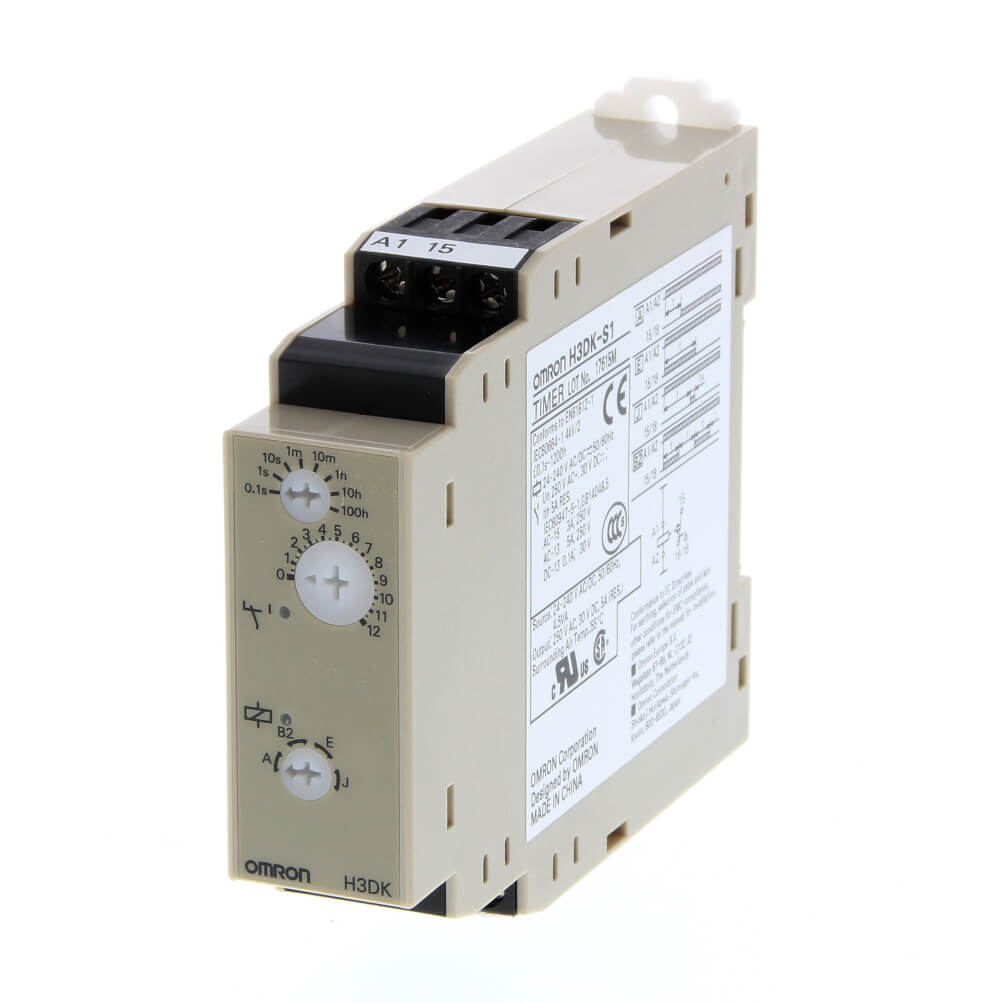

Omron H3DK-S1 AC/DC24-240 H3DK Series Multi-mode Timer, SPDT, 24-240 VAC/VDC, 0.1 s to 1200 h
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-S1 AC/DC24-240 is a versatile 22.5mm slim-line solid-state timer featuring four essential operating modes: ON-delay, Flicker ON start, Interval, and One-shot output. Engineered for international industrial standards, it supports a universal supply voltage of 24 to 240 VAC/VDC, providing procurement engineers with a single, flexible solution for diverse timing control requirements in automation and power distribution panels.
| Product ID (MPN) | H3DK-S1 AC/DC24-240 |
| Rated Power Supply Voltage | 24 to 240 VAC (50/60 Hz) / 24 to 240 VDC |
| Operation Modes | 4 Modes (ON-delay, Flicker ON start, Interval, One-shot output) |
| Control Output | Time-limit SPDT Relay |
| Time Range Setting | 0.1 s to 1,200 h (8 ranges selectable) |
| Contact Rating | 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Reset Voltage | 10% maximum of rated supply voltage |
| Impulse Withstand Voltage | 5 kV (between power terminals) |
| Degree of Protection | IP30 (Terminal Block: IP20) |
| Connecting Method | Terminal blocks |
