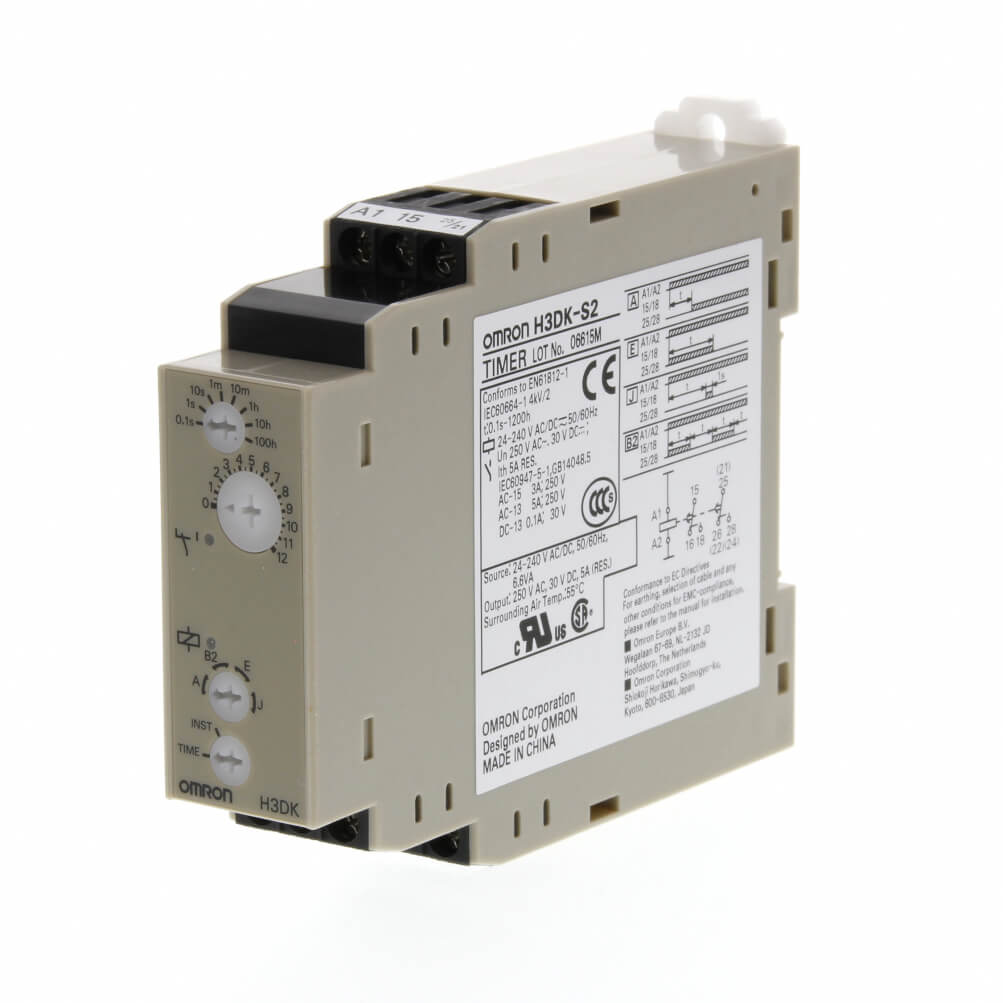

Omron H3DK-S2 AC/DC24-240 H3DK Series Multi-mode Timer, DPDT, 24-240 VAC/VDC, 0.1 s to 1200 h
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Omron H3DK-S2 AC/DC24-240 is a high-performance solid-state multi-mode timer featuring four essential operating functions (ON-delay, Flicker ON start, Interval, and One-shot output). Designed for industrial flexibility, this 22.5mm DIN-rail mounted unit supports a universal 24 to 240 VAC/VDC power supply and provides a DPDT relay output that can be switched between time-limit and instantaneous operation for precise control in automation systems.
| Product ID (MPN) | H3DK-S2 AC/DC24-240 |
| Rated Power Supply Voltage | 24 to 240 VAC (50/60 Hz) / 24 to 240 VDC |
| Operation Modes | ON delay, Flicker ON start, Interval, One shot output |
| Control Output | Relay output: DPDT (Time-limit SPDT + switchable Time-limit/Instantaneous SPDT) |
| Time Range Setting | 0.1 s to 1,200 h (8 selectable ranges) |
| Contact Rating | 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load) |
| Accuracy of Operating Time | ±1% FS max. |
| Impulse Withstand Voltage | 5 kV |
| Degree of Protection | IP30 (Terminal Block: IP20) |
| Connecting Method | Terminal blocks |
