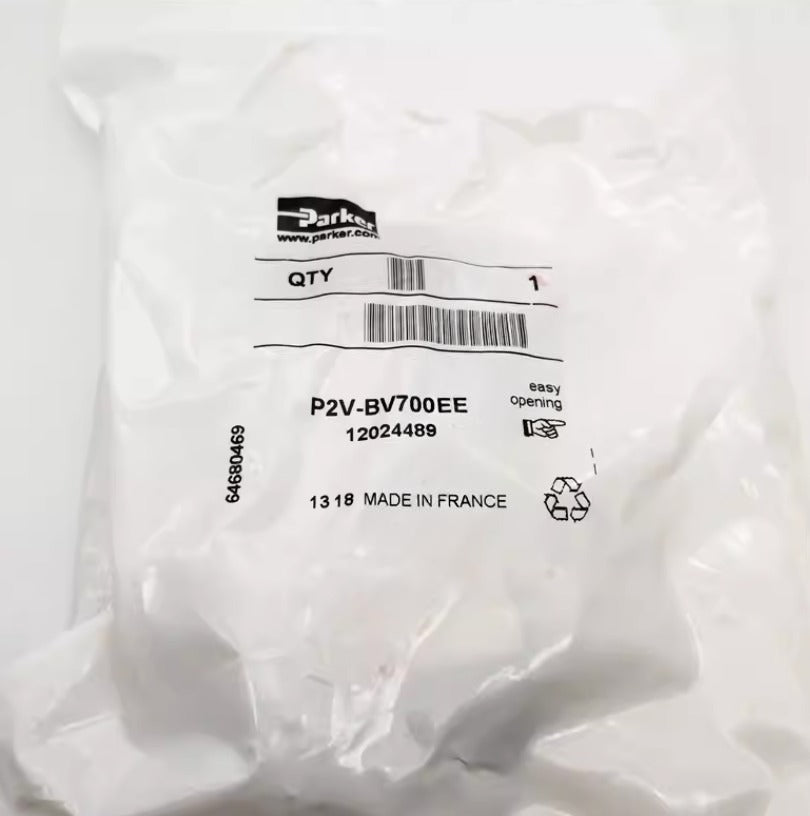

Parker 12024489 P2V-BV700EE Moduflex Size 1 Directional Control Valve, 4/2-Way, Double Solenoid
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker 12024489 (Model: P2V-BV700EE) is a precision-engineered 4/2-way solenoid valve belonging to the renowned Moduflex series. This Size 1 valve is designed for high-density manifold mounting within automated pneumatic systems. Featuring a double solenoid (bistable) configuration, it maintains its last commanded position even during power fluctuations. The Moduflex system is known for its modularity and lightweight composite construction, providing high flow rates in a compact footprint and tool-free internal configuration options. It is optimized for use with 24VDC control systems and is suitable for both standard and high-vibration industrial environments.
| Product ID | 12024489 |
| Model Number | P2V-BV700EE |
| Manufacturer | Parker Hannifin |
| Valve Series | Moduflex Automation |
| Moduflex Size | Size 1 |
| Valve Function | 4/2-way (Equivalent to 5/2) |
| Actuation | Double Solenoid (Bistable) |
| Control Voltage | 24VDC |
| Pilot Source | Internal Pilot |
| Nominal Flow Rate | 165 l/min (0.18 Cv) |
| Min Working Pressure | 2 bar (29 psi) |
| Max Working Pressure | 8 bar (116 psi) |
| Body Material | Reinforced Fiberglass Polyamide |
| Seal Material | Nitrile (NBR) |
| Mounting Type | Manifold / Island Mounted |
| Manual Override | Locking / Non-locking options |
