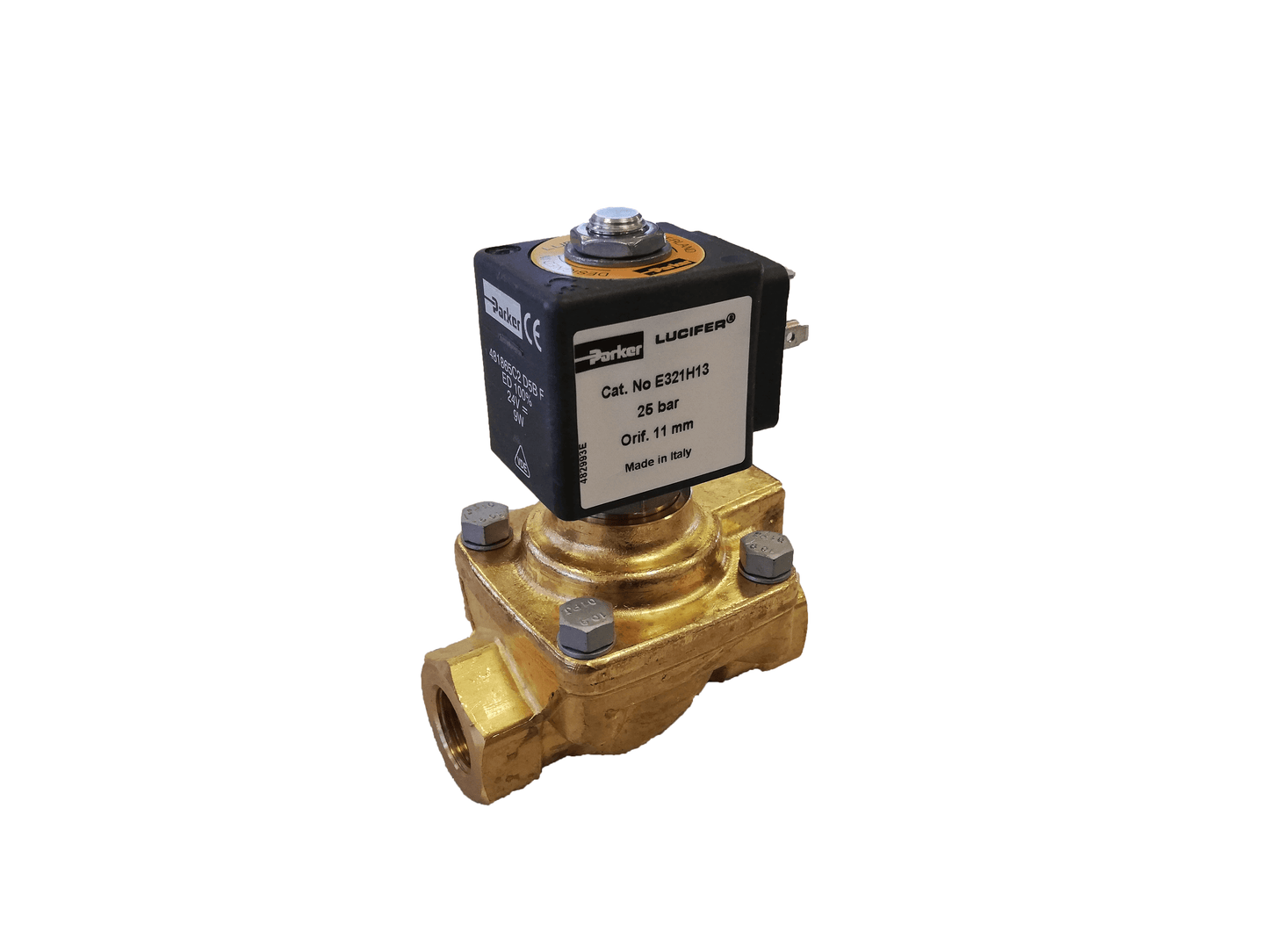

Parker 321H35-2995-491514C2 H Series Indirect Acting Solenoid Valve, 2/2-Way, 24V DC
Regular price
$225.00 USD
Regular price
Sale price
$225.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker H Series is an indirect acting solenoid valve, offering options for normally closed and open configurations from 1/4" to 3/4", designed for industrial and process applications. Sold as a single unit.
Key Features
- Robust design with different flow rates
- Temperature range suitable for various mediums including air and neutral gases
- Maximum operating pressure of 40 bar
- Seal material: PUR
| Part Number | 321H35-2995-491514C2 |
| Electrical Connection | 2 P + E plug according to EN 175301-803 type A |
| Maximum Operating Pressure | 40 bar |
| Coil Specifications Met | CE, VDE, UL, EAC |
| Insulation Class | F 155 °C |
| Media | Air, Neutral Gases, Liquids |
| Function | Normally closed |
| Maximum Fluid Temperature | 50 °C |
| Power Supply Voltage | 24V DC |
| Coil Power Consumption | 12W |
| Port Size | G 1/2 |
| Seal Material | PUR |
| Valve Type | 2/2-Way |
| Actuation Type | Pilot Operated |
| Port Type | Pipe Mounting |
| Body Material | CW 617N UNI EN 12165 |
| Seat Material | Stainless Steel |
| Orifice Size | 15 mm |
| Flow Coefficient 1 | 60 L/min |
| Flow Coefficient 2 | 3.6 m3/hour |
| Minimum Operating Pressure | 1.5 bar |
| Minimum Fluid Temperature | -10 °C |
| Coil Temperature Range | -40 to 50 °C |
| Specifications Met | - |
