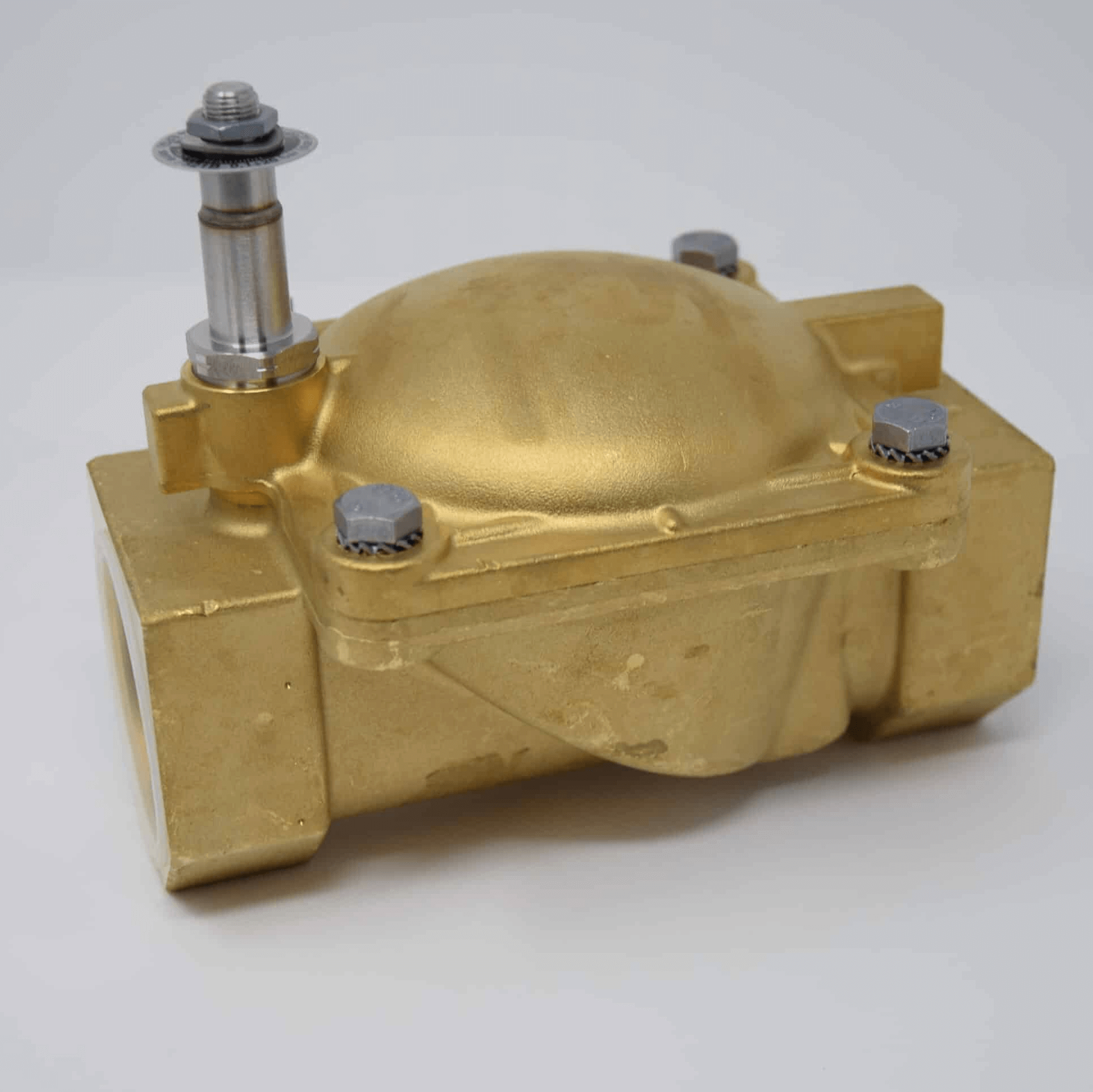

Parker 7321BGN00 7321B Series Solenoid Valve, Brass, Normally Closed, NBR Seal
Regular price
$240.00 USD
Regular price
Sale price
$240.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Parker 7321B Series solenoid valves are designed for controlling water, hot water, and steam in various applications such as industrial washing machines, cooling systems, and irrigation installations. This model, the 7321BGN00, offers high performance with low and high operating pressure differential and is constructed with robust materials to ensure long-term reliability.
Key Features
- Superior Flow Rate with exclusive diaphragm design
- Modular concept with a wide range of electrical parts for versatility
- Options available for manual override and speed control
- Compatible with FCSE coil ranges, including ATEX and IP67 parts
Specifications
| Valve Order Number | 7321BGN00 |
| Port Size | 2'' |
| Orifice Diameter | 50 mm |
| Flow Factors (Kv) | 37.2 m³/h |
| Operating Pressure Differential | 0.1 to 10 bar |
| Fluid Temperature Range | -10 to 90°C |
| Material | Forged Brass Body |
| Seal Material | NBR (Buna-N) |
