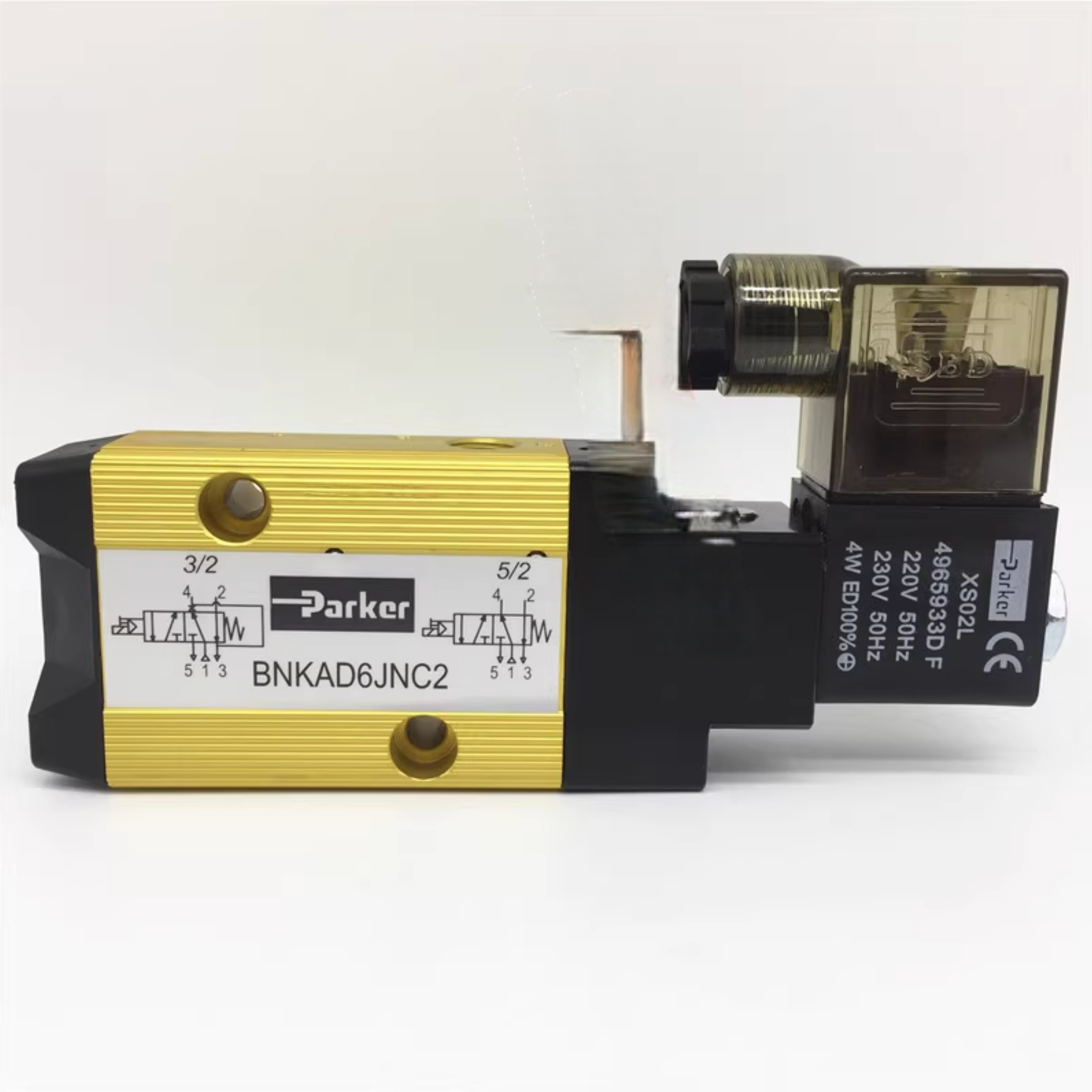

Parker BNKAD6JNC2-496593C2 NAMUR Direct Mount 3/2 & 5/2 Way Solenoid Valve, 1/4 BSP, 24VDC
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker BNKAD6JNC2-496593C2 is a high-performance, pilot-operated 3/2 and 5/2 way solenoid valve engineered for the actuation of double-acting cylinders and the piloting of larger control valves. This valve features a Direct Mount NAMUR Pad configuration, allowing for seamless integration with pneumatic actuators. Constructed with a robust aluminum body and high-grade stainless steel internal components, it is designed for reliability in industrial environments. This specific configuration includes the 496593C2 22mm DIN coil, providing 24VDC operation at 5W.
| Product ID | BNKAD6JNC2-496593C2 |
| Valve Function | 3/2 or 5/2 Way (Convertible) |
| Actuation Type | Single Solenoid, Pilot Operated |
| Mounting Configuration | NAMUR Direct Mount |
| Port Size | 1/4 BSP (G) |
| Orifice Size | 4 mm |
| Flow Factor (Qn) | 600 L/min (0.6 Cv) |
| Body Material | Aluminum |
| Coil Voltage | 24 VDC |
| Wattage | 5W |
| Coil Type | 22mm Din coil (Ref: 1) |
| Insulation Class | Class F Standard |
| Operating Pressure (Min) | 2 BAR |
| Operating Pressure (Max) | 10 BAR |
| Media Temperature | -25°C to +80°C |
| Compatible Fluids | Air and Inert Gases |
| Seals Material | NBR |
| Sleeve/Plunger Material | 303/304/430FR Stainless Steel |
| Spool Material | Thermoplastic |
| Installation Orientation | Any (Vertical and Upright preferred) |
