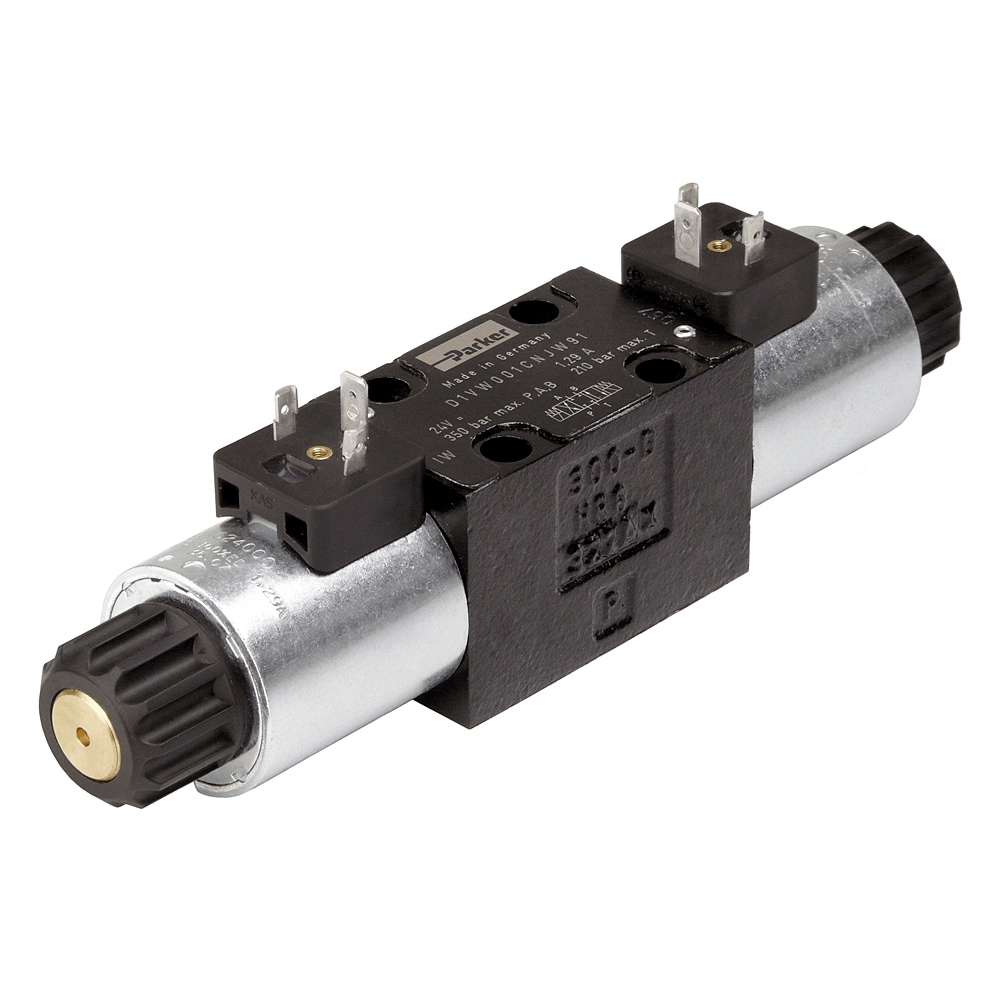

Parker D1VW008CNJW Directional Control Valve, 24 VDC, 50 L/min
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker D1VW008CNJW is a direct-operated directional control valve with an NG06 / CETOP 03 port connection. This variant uses a 24 VDC solenoid, Spool Code 008, and is rated for a maximum flow rate of 50 L/min and maximum operating pressure of 350 bar.
| Part Number | D1VW008CNJW |
| Spool Code | 008 |
| Input Voltage | 24 VDC |
| Maximum Flow Rate | 50 L/min |
| Maximum Operating Pressure | 350 bar |
| Port Connection | NG06 / CETOP 03 |
| Connection Type | Connector as per EN 175301-803 |
| Mounting Type | Subplate |
| Seal Material | NBR |
| Body Material | Cast Iron |
Parker identifies the D1VW series for general hydraulic applications.
Apexon Supply provides B2B sourcing, replacement sourcing and technical alignment support for Parker directional control valves. Buyers should verify voltage, flow rate, operating pressure, port connection and spool configuration against the original equipment requirements.
Send Parker D1VW008CNJW, required quantity and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
