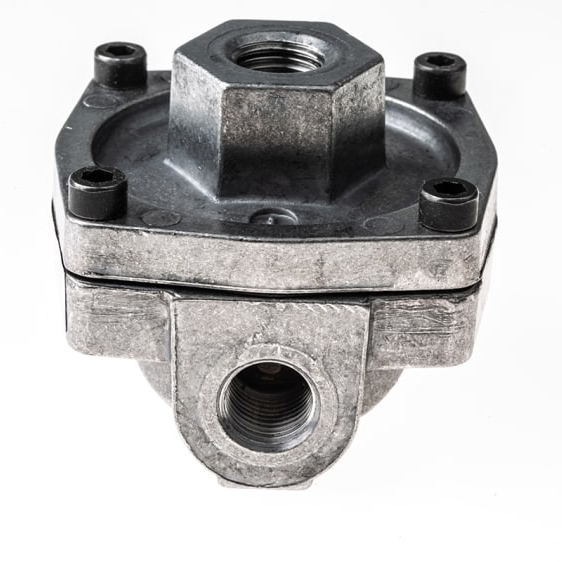

Parker P4Q-BA12 Quick Exhaust Valve, G1/4 Port, Cv 2.3, Aluminium, Nitrile Diaphragm
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Parker P4Q-BA12 is a quick exhaust valve designed for efficient control in pneumatic systems. It increases piston speeds with its super sensitive diaphragm and is virtually stiction-free, suitable for diverse industrial applications.
Key Features
- Increases piston speeds with a sensitive diaphragm
- Extremely low operating differential
- May be used as a differential shuttle valve
- Operating pressure range: 0.2 to 10 bar
- Temperature options for standard and high temperature
Specifications
| Order Code | P4Q-BA12 |
| Port Size | G1/4 |
| Cv Rating | 2.3 |
| Weight | 0.20 kg |
| Body Material | Aluminium |
| Diaphragm Material | Nitrile (Standard) |
| Operating Temperature | -10°C to +80°C (Standard) |
