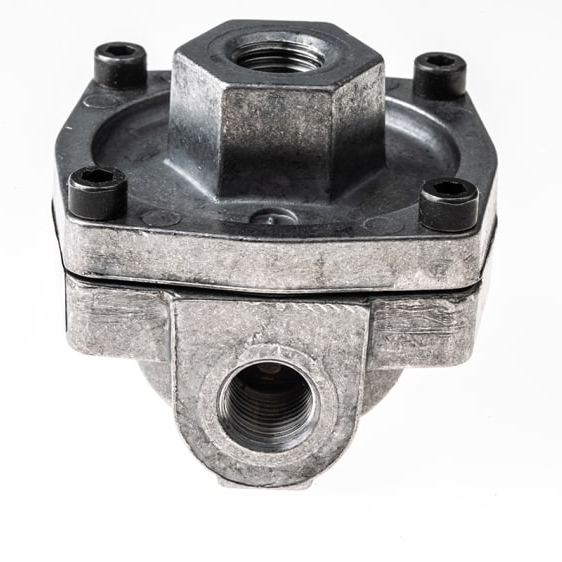

Parker P4Q-BA13 Quick Exhaust Valve, G3/8 Port, Cv 3.6, Aluminium, Nitrile Diaphragm
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Parker P4Q-BA13 is a quick exhaust valve designed to optimize pneumatic system performance. It features a sensitive diaphragm to enhance piston speeds and offers low operating differential, making it suitable for high-demand applications.
Key Features
- Increases piston speeds with a sensitive diaphragm
- Extremely low operating differential
- Can be used as a differential shuttle valve
- Operating pressure range: 0.2 to 10 bar
- Options for standard and high temperature use
Specifications
| Order Code | P4Q-BA13 |
| Port Size | G3/8 |
| Cv Rating | 3.6 |
| Weight | 0.18 kg |
| Body Material | Aluminium |
| Diaphragm Material | Nitrile (Standard) |
| Operating Temperature | -10°C to +80°C (Standard) |
